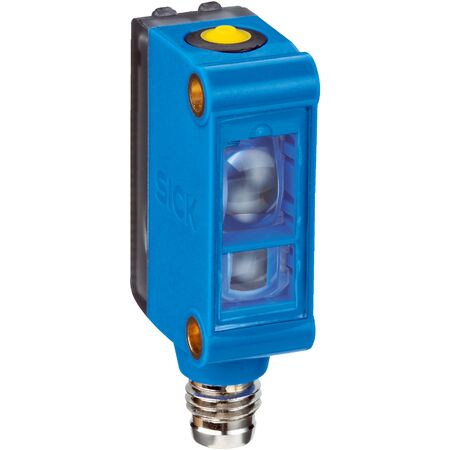

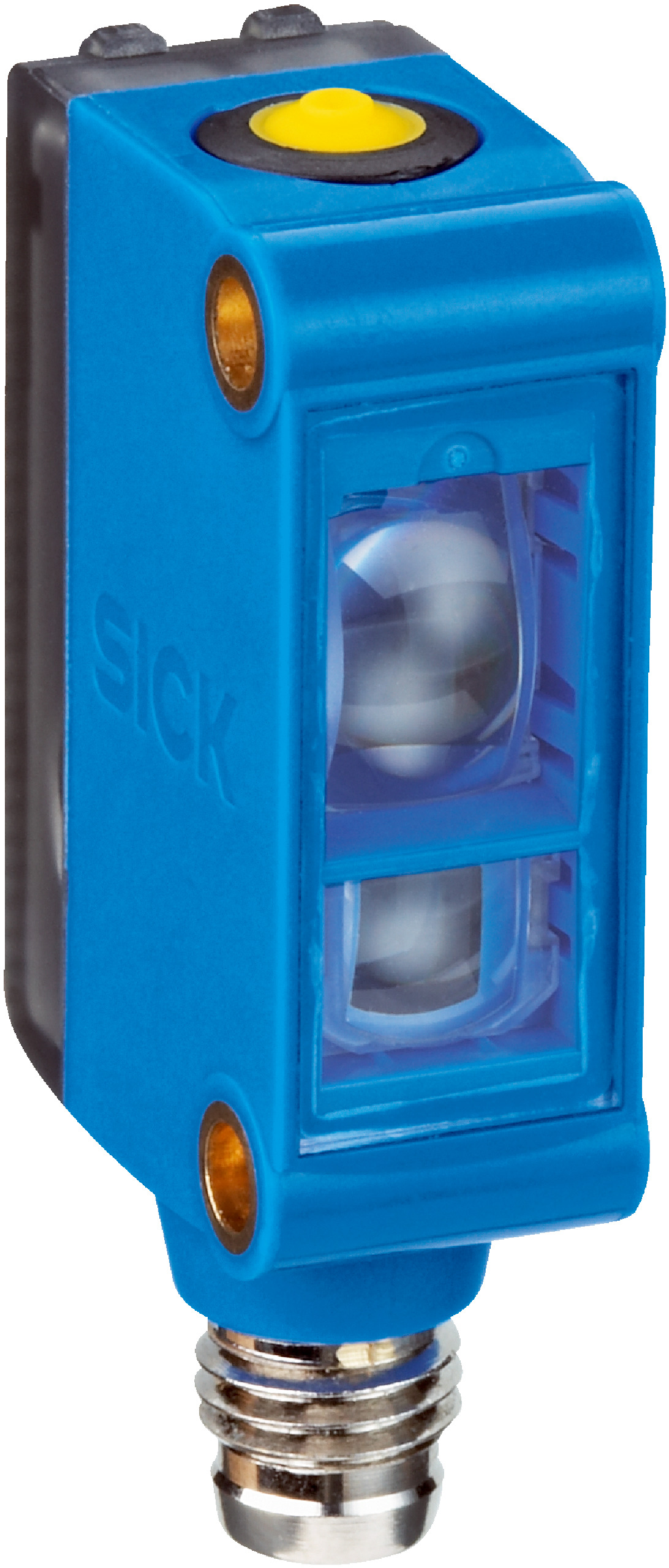

RGB LED Proximity Sensor | M8 Connector | IP67 Rated | 15 kHz Switching Frequency | by SICK
The RGB LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a robust M8 connector and an IP67 rated enclosure for dust and water resistance. With a high switching frequency of 15 kHz and a fast response time of 32 µs, this sensor is perfect for quality control systems and position sensing in manufacturing lines, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: ≤ 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: PNP, dark switching
- Output current max: 50 mA
- Retention time: 28 ms, non-volatile memory
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: Male M8, 4-pin connector
- LED indicators: Green for power, yellow for output status
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: IEC 60068 compliant
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a light spot size of 1.6 mm x 9.5 mm
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- High switching frequency of 15 kHz and fast response time of 32 µs
- PNP switching output with dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WP11101PS08 RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
