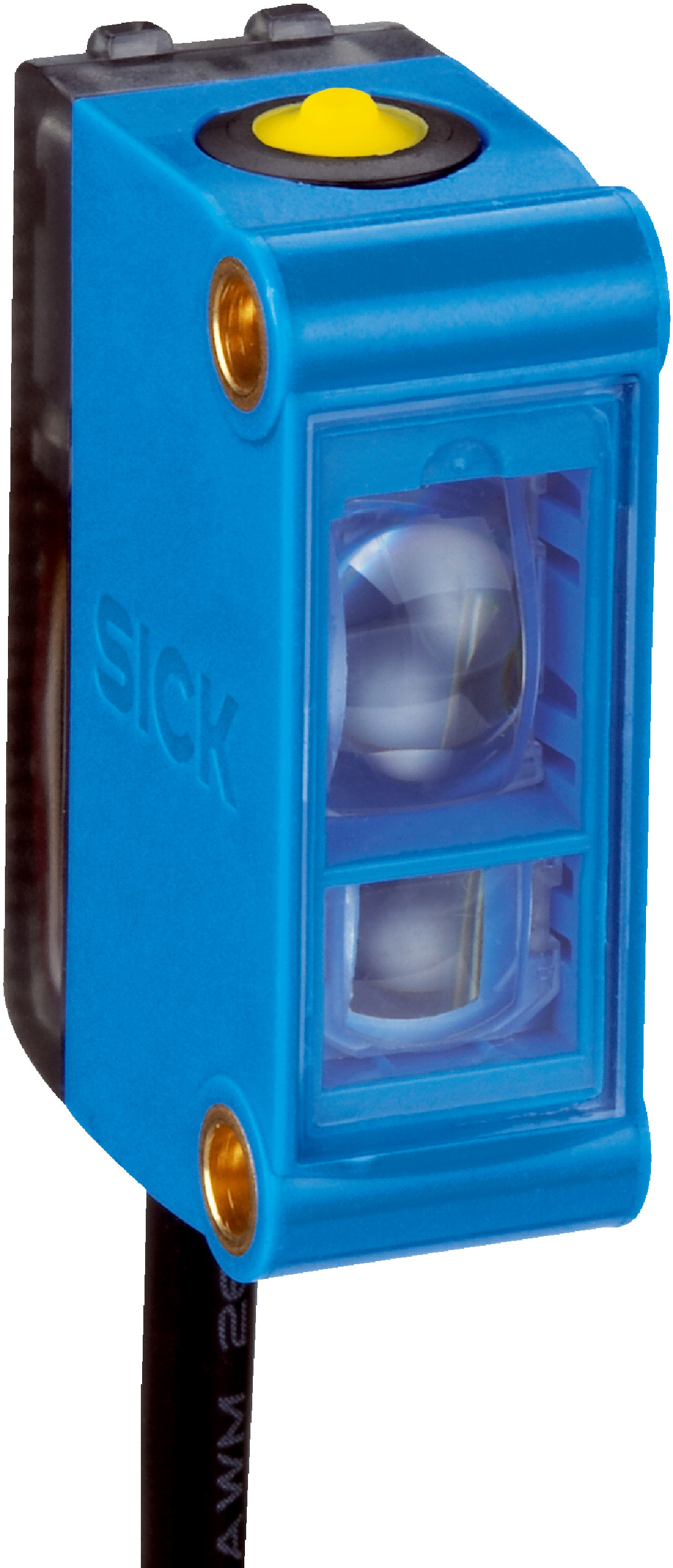

RGB LED Proximity Sensor | NPN Output | IP67 Rated | 12.5mm Sensing Distance | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a sensing distance of up to 12.5 mm and an NPN switching output. With an IP67 rating for dust and water resistance, this sensor is perfect for quality control systems and position sensing in manufacturing lines, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: NPN, max output current 50 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing
- Light spot size: 1.6 mm x 9.5 mm
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Enclosure rating: IP67
- Operating temperature: –10 °C to +55 °C
- Storage temperature: –20 °C to +75 °C
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a light spot size of 1.6 mm x 9.5 mm
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from –10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

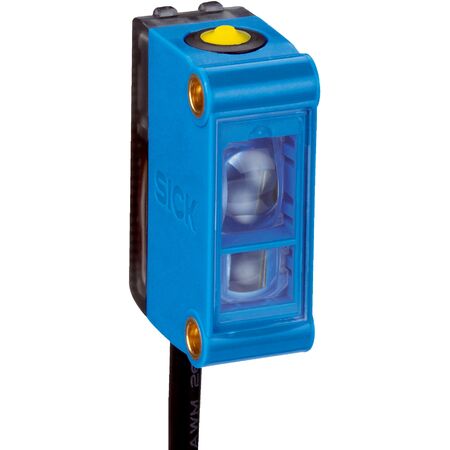

The SICK KTM-WN11182P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
