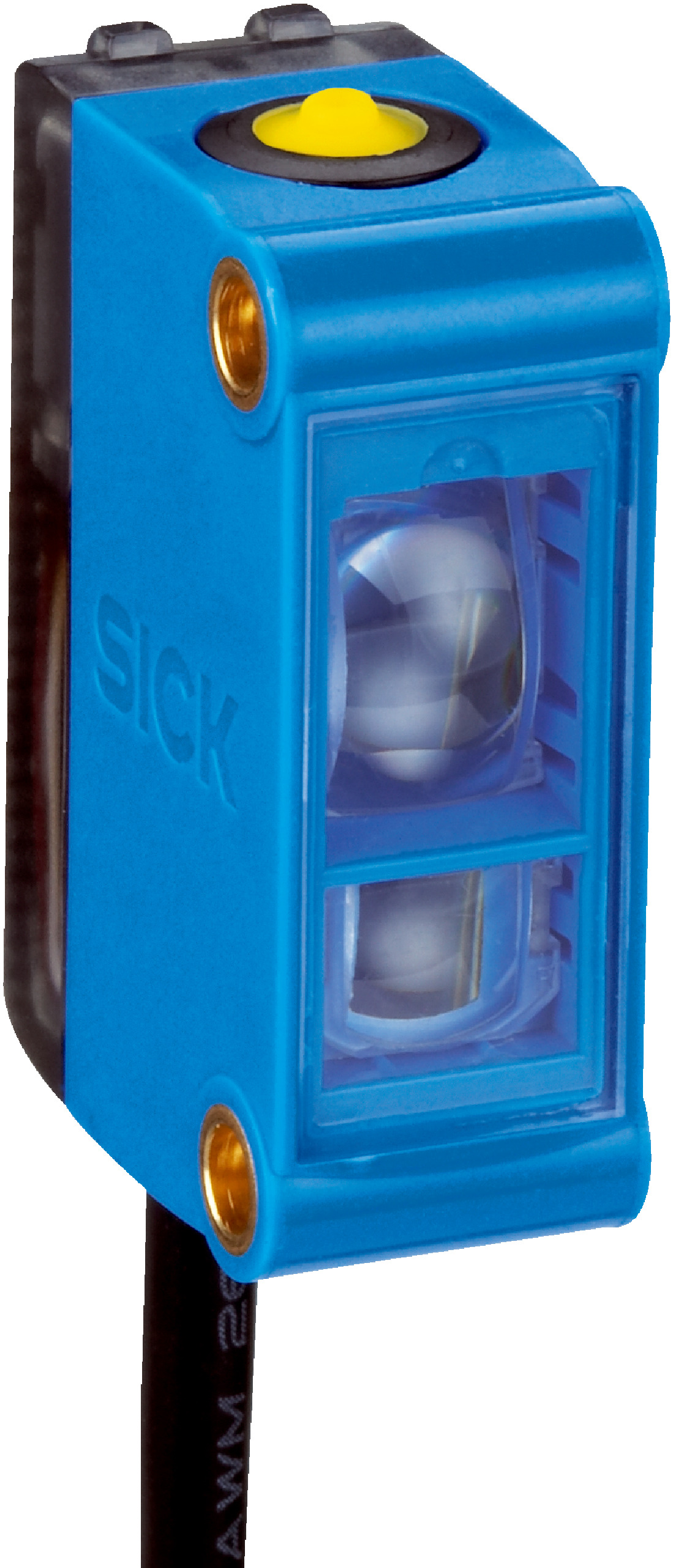

RGB LED Proximity Sensor | NPN Output | IP67 Rated | Small Housing Design | by SICK
The RGB LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a compact housing and NPN output. With an IP67 rating for dust and water resistance, it operates efficiently in temperatures from -10 °C to +55 °C, making it ideal for manufacturing lines and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: NPN, max output current 50 mA
- Light source: RGB LED (470 nm, 525 nm, 625 nm)
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a 1.6 mm x 9.5 mm light spot size
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Non-volatile memory reduces configuration errors and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

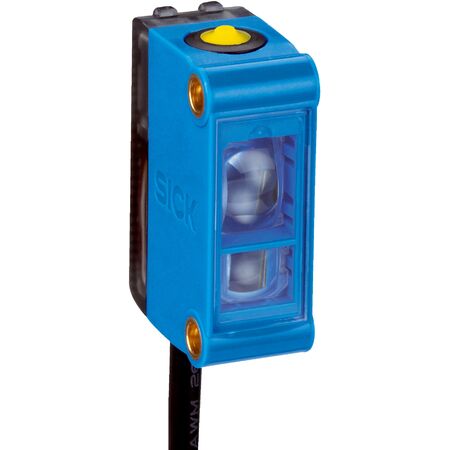

The SICK KTM-WN11172P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
