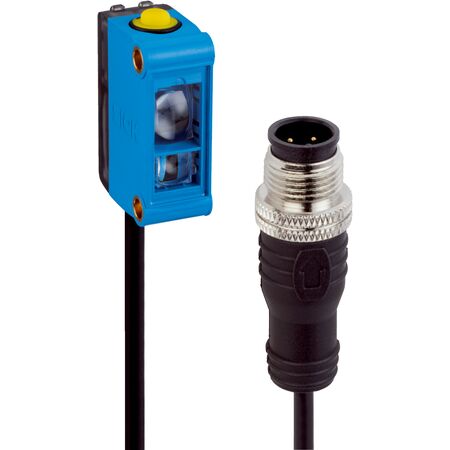

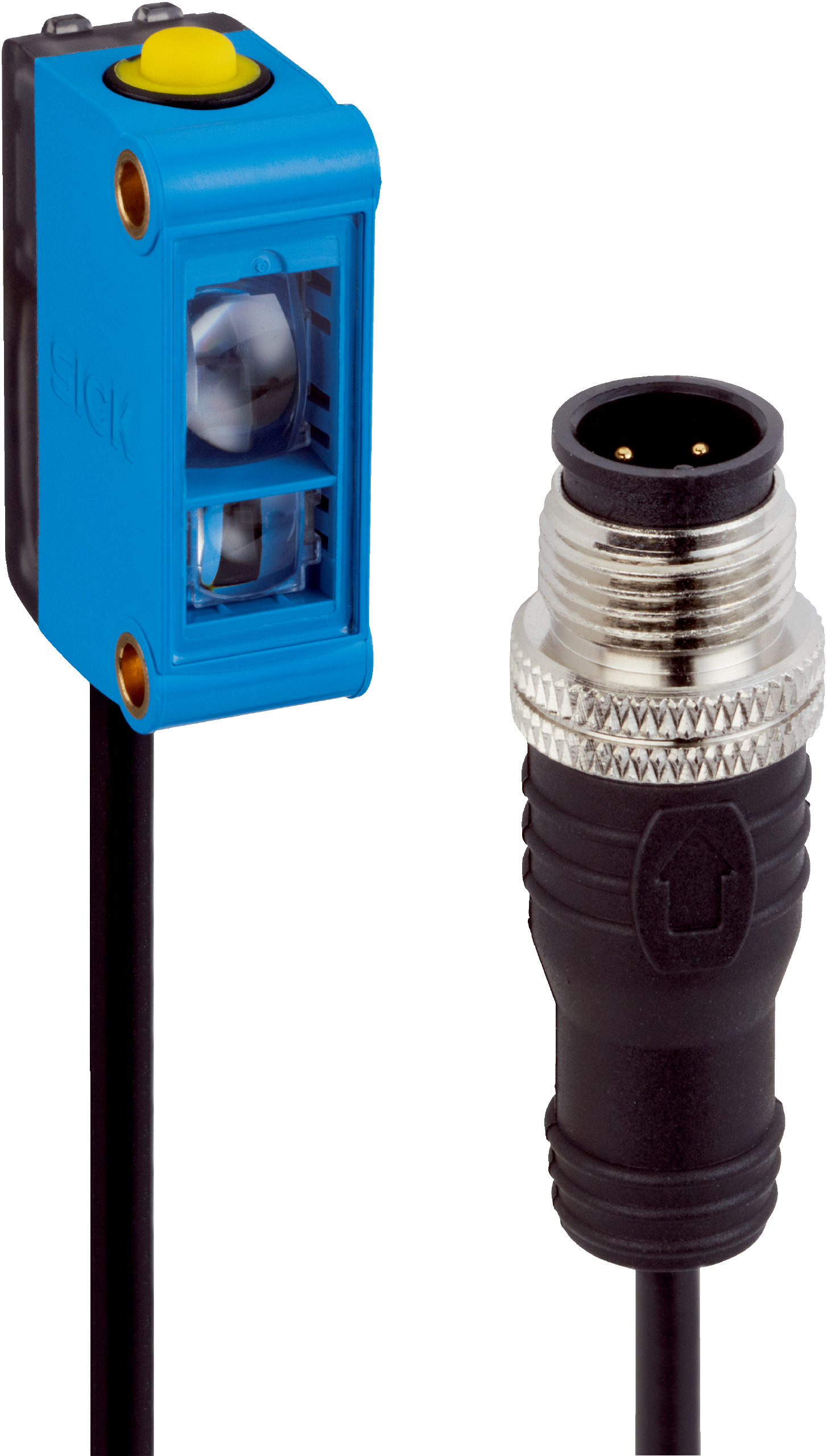

RGB LED Proximity Sensor | NPN Output | IP67 Rated | Teach-In Button | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a compact design and NPN output for light/dark switching. With an IP67 rating, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and robotics applications. The teach-in button allows for easy adjustments, enhancing its versatility in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Output current max: < 100 mA
- Switching output: NPN, light/dark switching
- Light source: LED RGB (640 nm, 525 nm, 470 nm)
- Light spot size: 4.9 mm x 10.1 mm
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 640 nm, 525 nm, and 470 nm
- Sensing distance up to 15 mm with ±4 mm tolerance
- Teach-in button for easy adjustment and teach-in static/dynamic modes
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics sensing and positioning
- Packaging and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS and PMMA materials extend product life and reduce waste
- IP67 rating ensures long-term reliability in harsh environments, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSM-WN1B1C2P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
