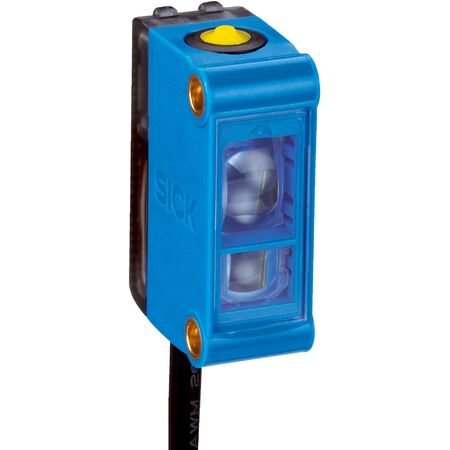

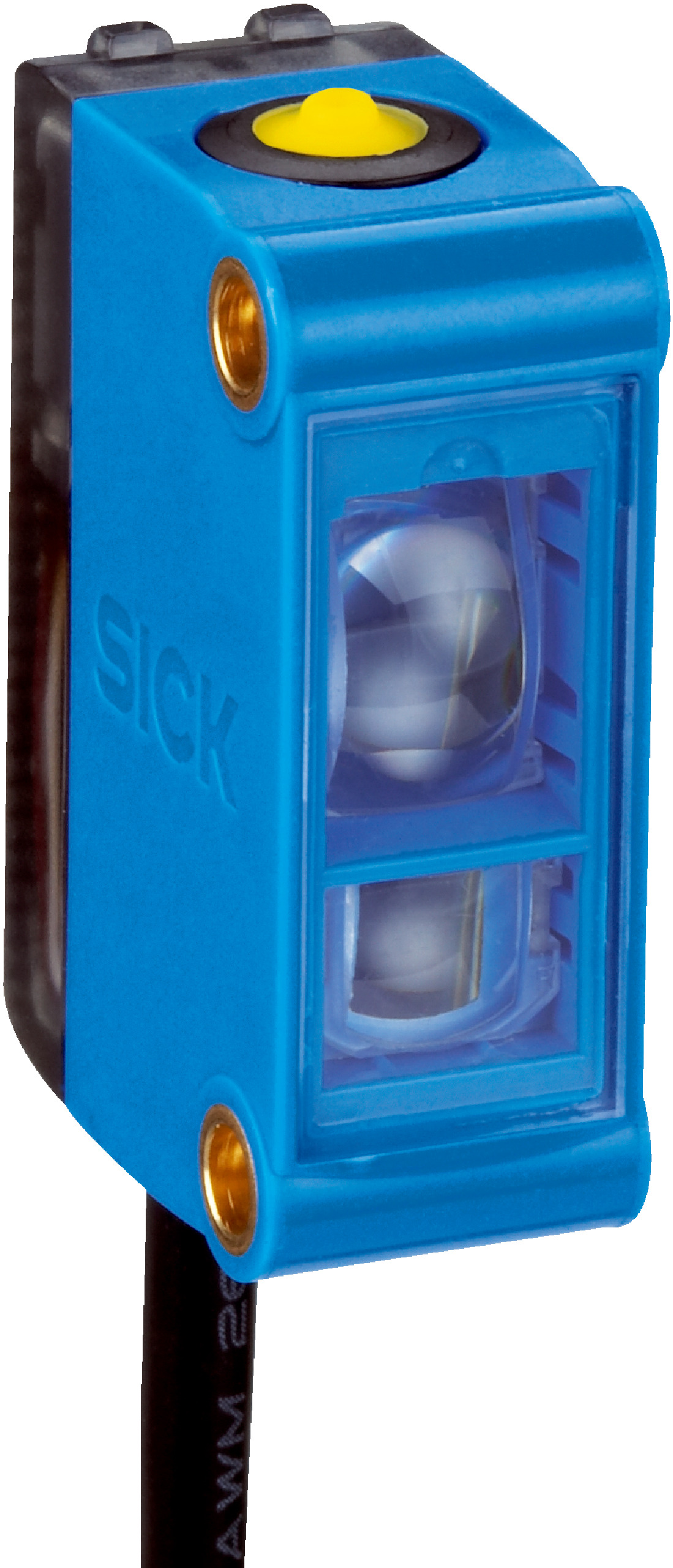

RGB LED Proximity Sensor | Small Housing Design | 15 kHz Switching Frequency | IP67 Rated | by SICK
The RGB LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a small housing and a high switching frequency of 15 kHz. With an IP67 rating for dust and water resistance, this sensor is perfect for manufacturing lines and quality control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: less than 50 mA
- Switching frequency: 15 kHz
- Response time: 32 microseconds
- Light source: RGB LED with wavelengths 470 nm, 525 nm, 625 nm
- Switching output: PNP with max output current 50 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature range: -10°C to +55°C
- Storage temperature range: -20°C to +75°C
- Enclosure rating: IP67
- Connection: Cable with M8 male connector, 4-pin, 0.2 m
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a light spot size of 1.6 mm x 9.5 mm
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- High switching frequency of 15 kHz and fast response time of 32 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M8 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Robotics and machine vision applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS housing and PMMA optics reduce material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WP11173P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
