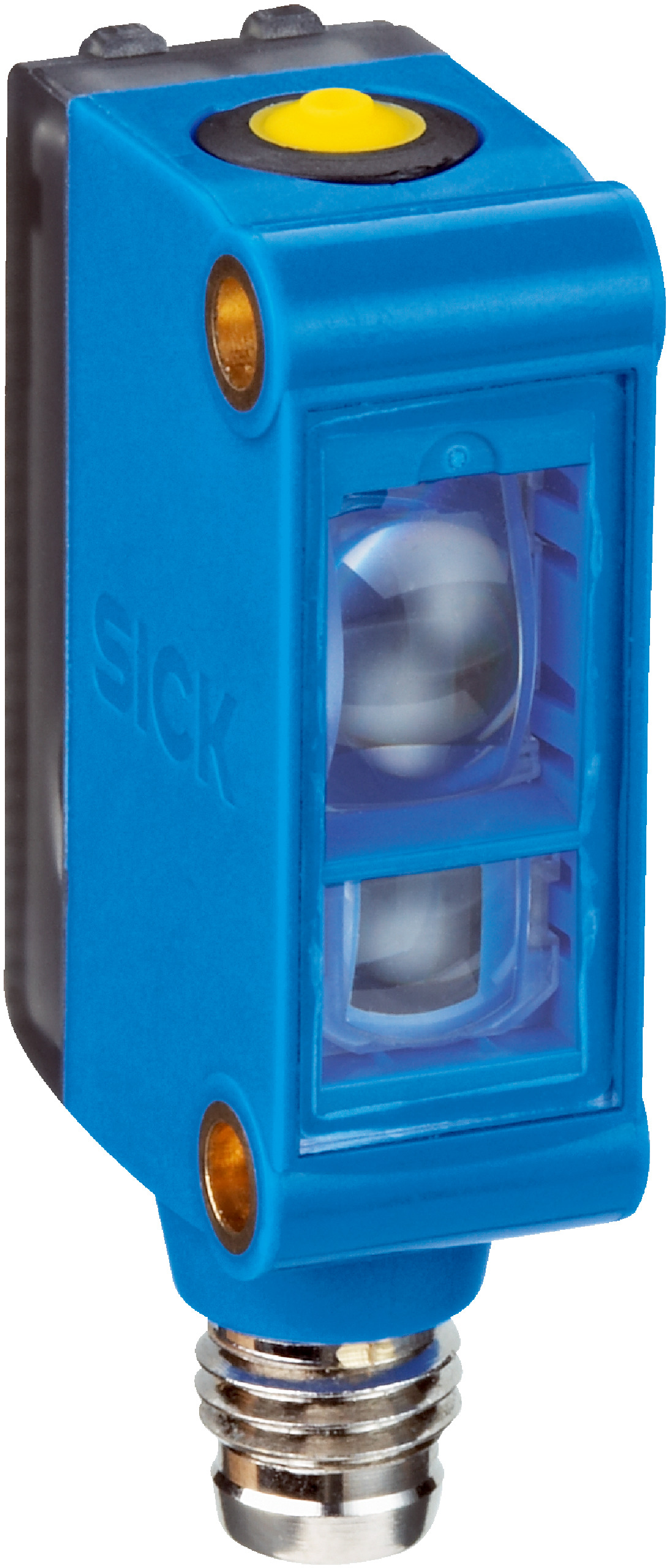

RGB LED Proximity Sensor | Small Housing Design | IP67 Rated | 15 kHz Switching Frequency | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a compact housing and an impressive sensing distance of up to 12.5 mm. With a high switching frequency of 15 kHz and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control, robotics, and quality inspection systems. Its low power consumption and durable design make it an eco-friendly choice for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: less than 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Switching output: NPN, max output current 50 mA
- Light source: RGB LED with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing
- Light spot size: 1.6 mm x 9.5 mm
- Protection class: III
- Enclosure rating: IP67
- Connection type: Male connector M8, 4-pin
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Teach-in button for easy 2-point static/dynamic and proximity mark teach-in
- NPN switching output with light/dark switching mode
- High switching frequency of 15 kHz and fast response time of 32 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected output
- LED indicators for power and output status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and assembly line sensing
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS housing and PMMA optics reduce material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WN11181P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
