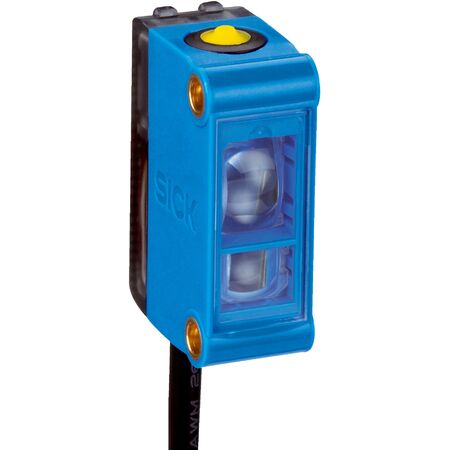

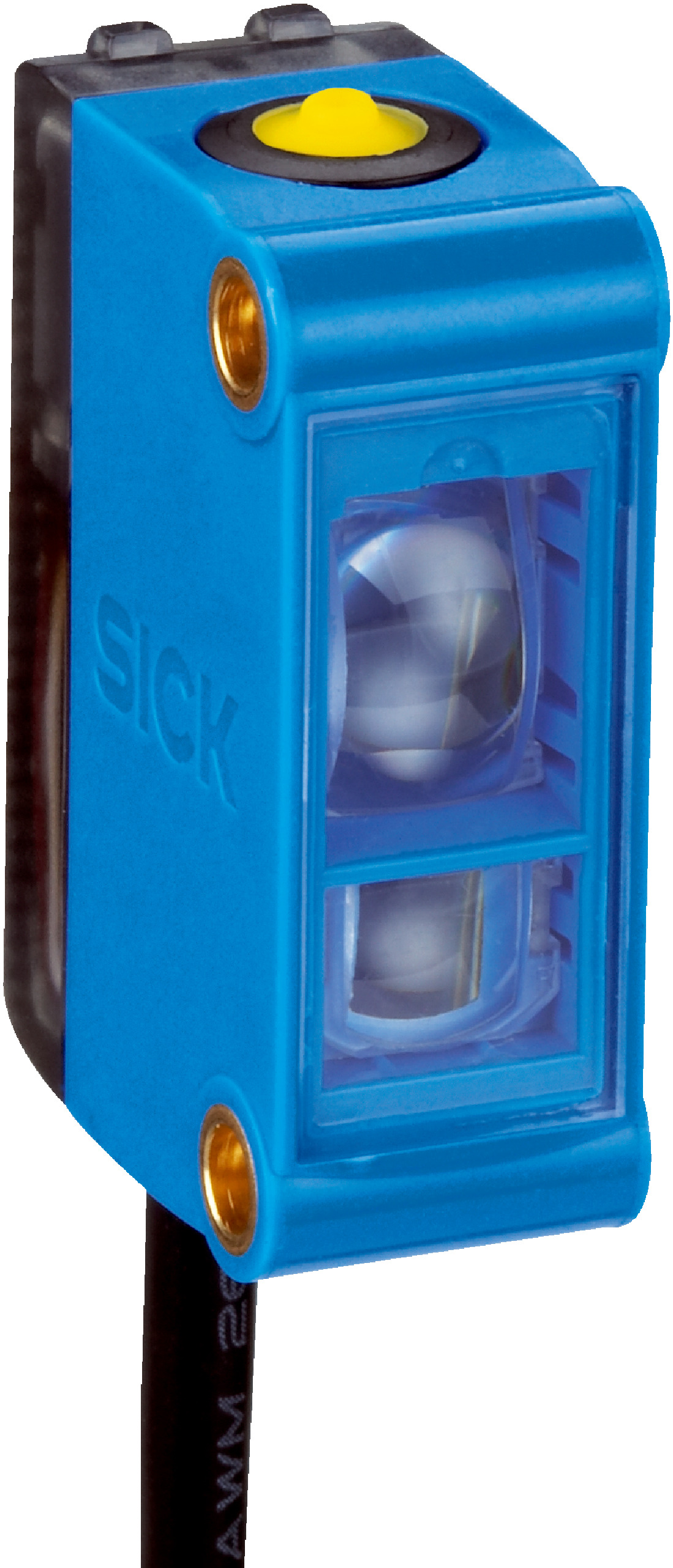

RGB LED Proximity Sensor | Small Housing Design | IP67 Rated | 15 kHz Switching Frequency | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a compact housing and an impressive sensing distance of up to 12.5 mm. With a high switching frequency of 15 kHz and a fast response time of 32 µs, this sensor is perfect for applications in manufacturing process control, robotics, and quality inspection systems. Its IP67 rating ensures durability in harsh environments, making it a reliable choice for your sensing needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Switching output: PNP, light/dark switching
- Output current max: 50 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with vertical light spot direction
- Teach-in button for easy adjustment with 2-point teach-in modes
- High switching frequency of 15 kHz and fast response time of 32 µs
- PNP switching output with light/dark switching mode
- Cable with M12 male connector, 4-pin, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and assembly line sensing
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce material waste
- Long service life reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-WP11282P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
