RGB LED Proximity Sensor | Small Housing Design | IP67 Rated | 15 kHz Switching Frequency | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a compact housing and a sensing distance of up to 12.5 mm. With a high switching frequency of 15 kHz and an IP67 rating for dust and water resistance, this sensor is perfect for precise object detection in manufacturing lines and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: less than 50 mA
- Switching frequency: 15 kHz
- Response time: 32 microseconds
- Light source: RGB LED with wavelengths 470 nm, 525 nm, 625 nm
- Switching output: PNP with max output current 50 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Male connector M8, 4-pin
- Operating temperature: –10 °C to +55 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a 1.6 mm x 9.5 mm light spot size
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- High switching frequency of 15 kHz and fast response time of 32 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from –10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

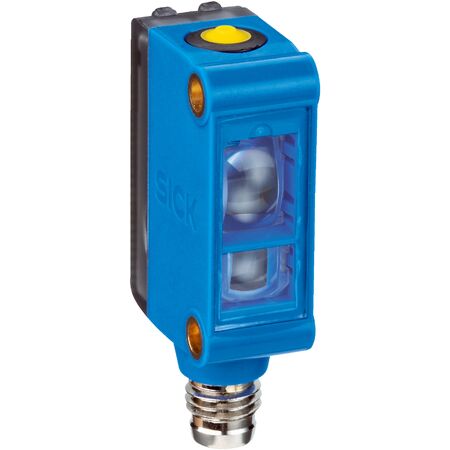

The SICK KTM-WP11171P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
