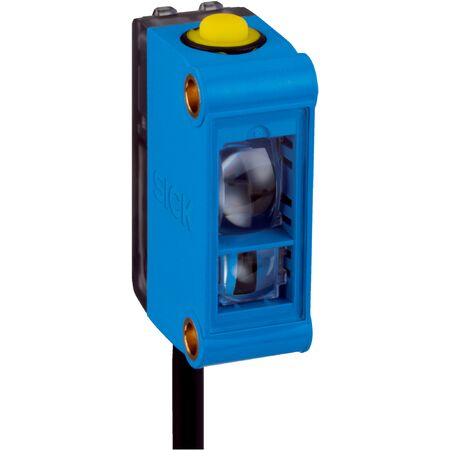

RGB LED Proximity Sensor | Small Housing Design | IP67 Rated | by SICK
The RGB LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a small housing and an IP67 rating for dust and water resistance. With a sensing distance of up to 15 mm and a teach-in button for easy adjustments, this sensor is perfect for manufacturing process monitoring and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Switching output: NPN, light/dark switching
- Output current max: < 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: 4-wire cable, 2 m length, PVC insulation
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 640 nm, 525 nm, and 470 nm
- Sensing distance up to 15 mm with ±4 mm tolerance
- Vertical light spot direction with 4.9 mm x 10.1 mm spot size
- Teach-in button for easy adjustment and dynamic/static teach-in modes
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process monitoring
- Robotics and assembly line sensing
- Quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS and PMMA materials extend product life reducing waste
- IP67 rating ensures long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSM-WN1B1C4P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
