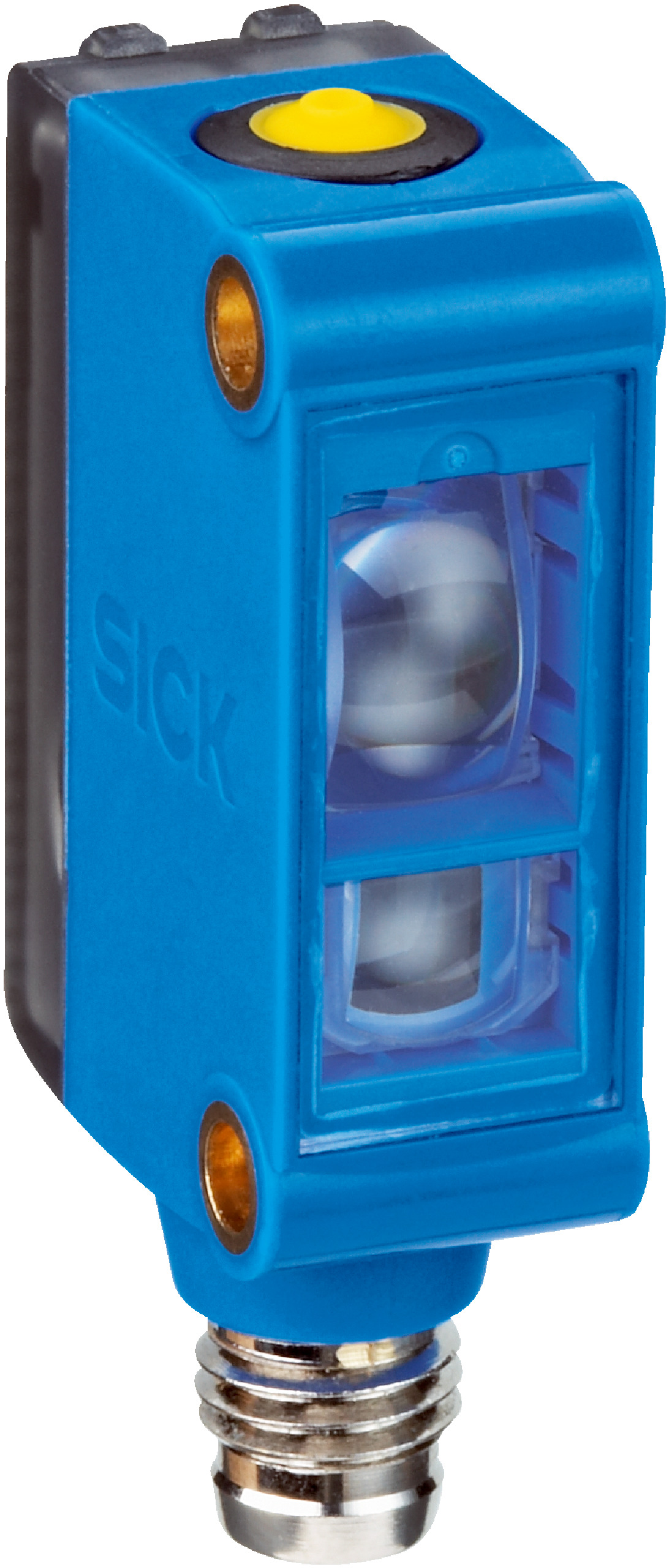

RGB LED Sensor | Compact Industrial Color Sensor | IP67 Rated | 12V to 24V DC | by SICK
The RGB LED Sensor is designed for industrial automation, offering precise color sensing and object detection. With a compact design and IP67 rating, it operates within a supply voltage of 12V to 24V DC and features a fast response time of 32 µs. Ideal for machine vision systems, this sensor ensures reliable performance in demanding environments, making it perfect for process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: NPN, max output current 50 mA
- Retention time: 28 ms with non-volatile memory
- Time delay: Switch-off delay 520 ms via IO-Link
- Housing material: ABS
- Optics material: PMMA
- Connection type: Male M8, 4-pin connector
- LED indicators: Green for power, yellow for output status
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: IEC 60068 compliant
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with vertical light spot direction
- Adjustable via cable, IO-Link, and teach-in button
- 2-point teach-in mode for static/dynamic and proximity to mark
- IO-Link V1.1 interface with 38.4 kbit/s data rate and 2.3 ms cycle time
- Two NPN switching outputs with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for robust industrial use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration via IO-Link.
Applications
- Industrial automation for object detection and color sensing
- Process control requiring precise RGB color measurement
- Machine vision systems with compact sensor requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-WN117A1P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color sensing applications.
