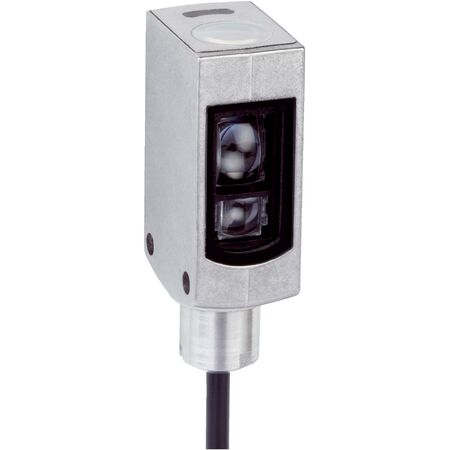

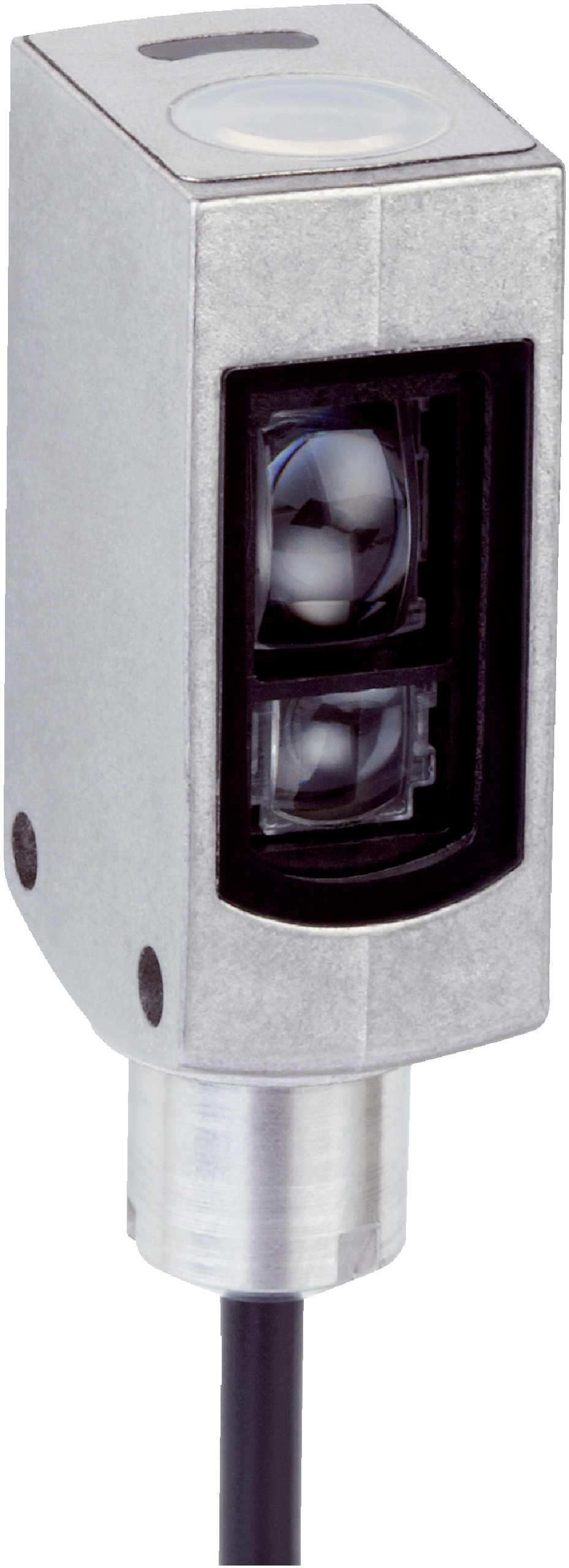

RGB LED Sensor | Compact Industrial Design | IP69K Rated | 15 kHz Switching Frequency | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a compact design and IP69K rating for harsh environments. With a high switching frequency of 15 kHz and a fast response time of 35 µs, it ensures precise object detection and position sensing. Ideal for manufacturing lines and quality control systems, this sensor is built for reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 35 µs
- Switching output: PNP, light/dark switching mode
- Output current max: 50 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Shock load: IEC 60068 compliant
- Enclosure rating: IP69K
- Light spot size: 1.6 mm x 9.5 mm
- Light spot direction: Vertical
- Adjustment: Teach-in button with 2-point teach-in static/dynamic
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Small stainless steel housing for compact installation
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 11 mm with ±3 mm tolerance
- Teach-in button for easy 2-point static/dynamic calibration
- High switching frequency of 15 kHz and fast response time of 35 µs
- IP69K rated enclosure for protection against dust and high-pressure water jets
- Cable with M12 male 4-pin connector, 0.2 m length
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Harsh environments needing IP69K rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable IP69K rated housing reduces waste by extending product life
- Non-volatile memory reduces need for recalibration and maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WP1A282V RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
