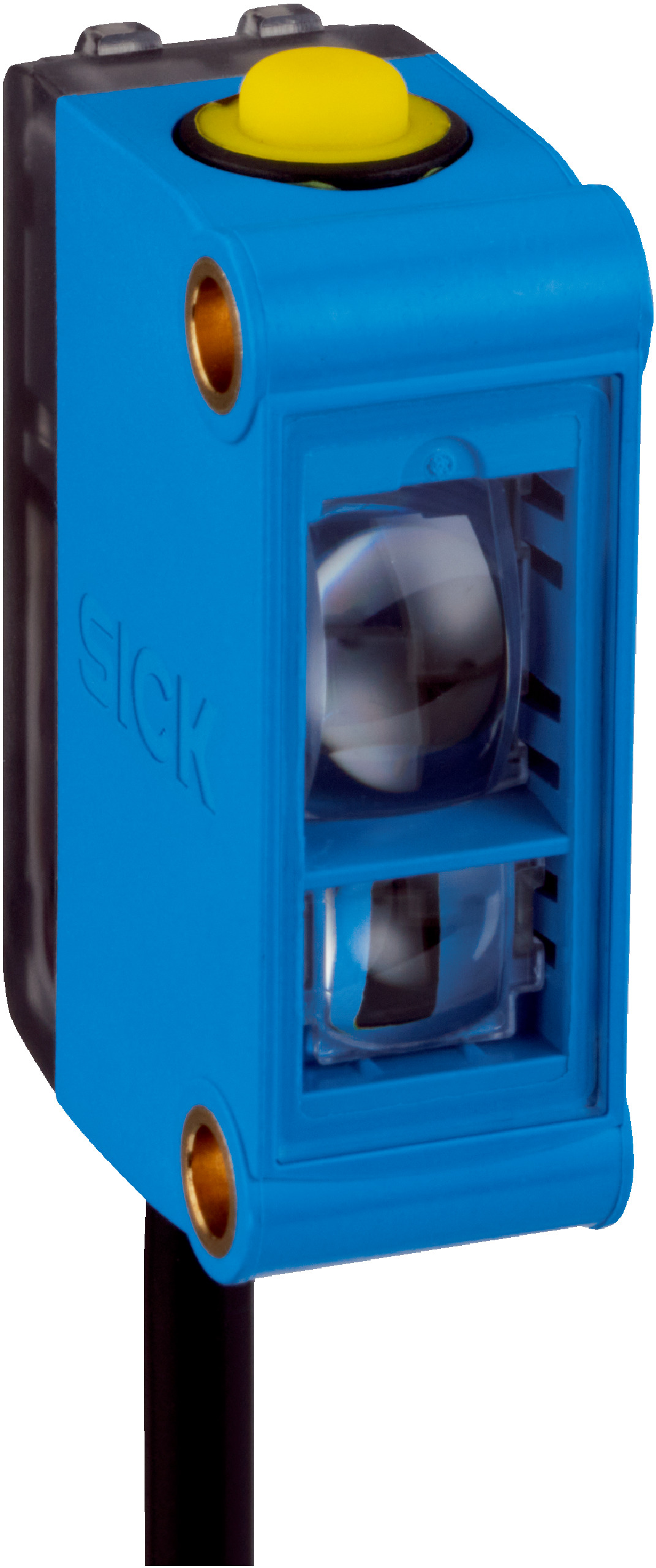

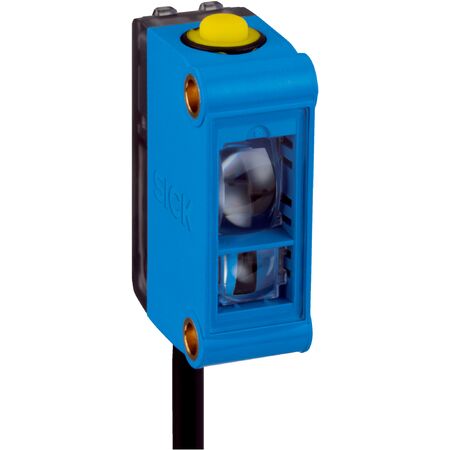

RGB LED Sensor CSM-WN111C4P | IP67 Rated | Fast Response Time | NPN Switching Output | by SICK
The RGB LED Sensor CSM-WN111C4P is designed for industrial automation, featuring a high switching frequency of 1.7 kHz and a fast response time of 300 µs. With an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Switching output: NPN, light/dark switching
- Output current max: < 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: 4-wire cable, 2 m length, PVC insulation
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 640 nm, 525 nm, 470 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Teach-in button for easy adjustment and configuration
- NPN switching output with light/dark switching mode
- High switching frequency of 1.7 kHz and fast response time of 300 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Packaging and material handling
- Robotics and manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS and PMMA materials extend product lifespan reducing waste
- IP67 rating ensures long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSM-WN111C4P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
