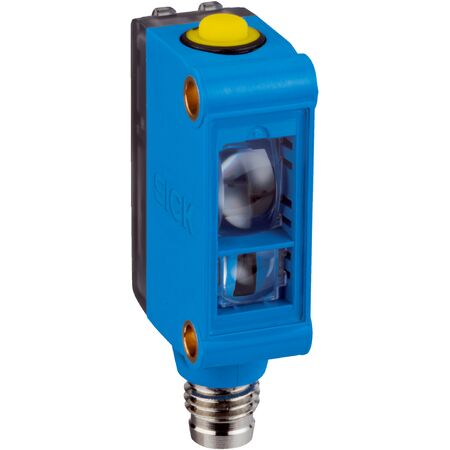

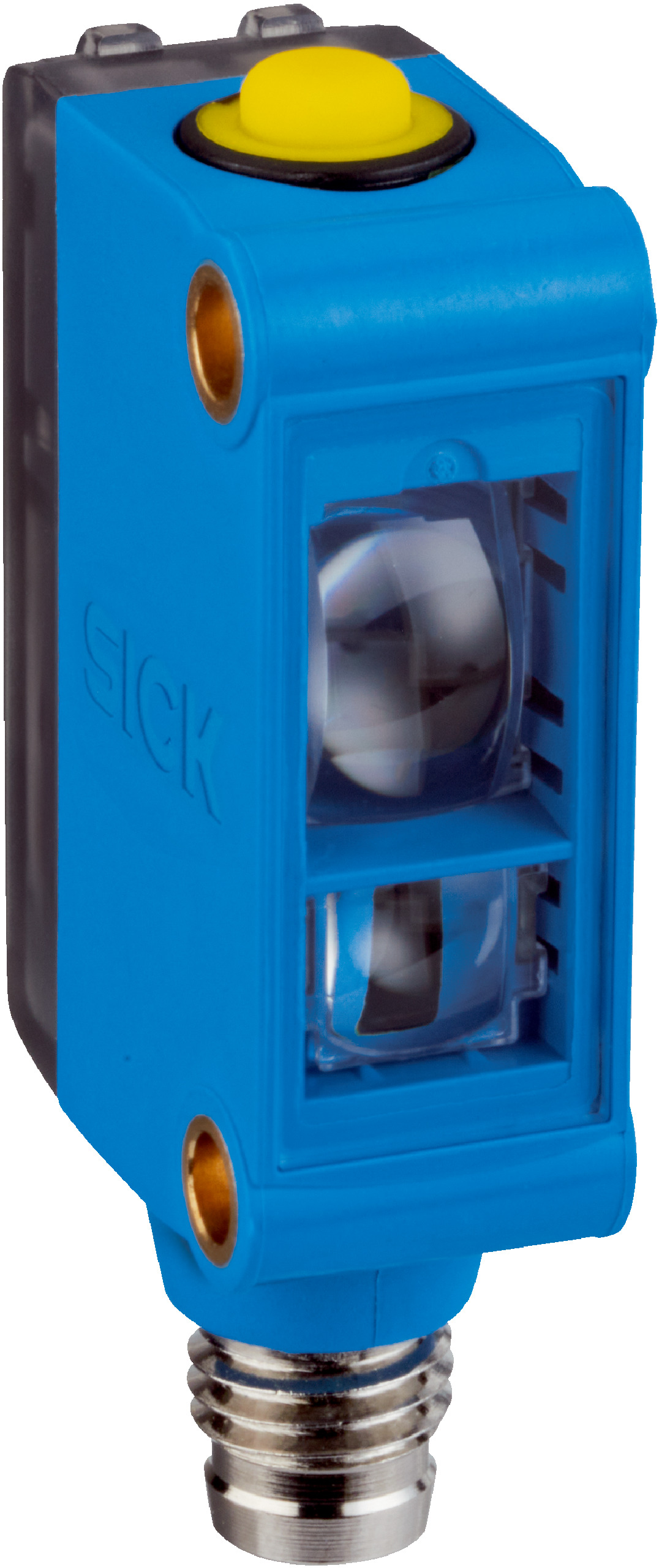

RGB LED Sensor CSM-WP111C1P | IP67 Rated | PNP Output | Small Housing Design | by SICK
The RGB LED Sensor CSM-WP111C1P is designed for industrial automation, featuring a compact housing and IP67 rating for dust and water resistance. With a sensing distance of up to 12.5 mm and a teach-in button for easy adjustments, this sensor is perfect for machine safety and control systems, ensuring reliable performance in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Switching output: PNP, max output current < 100 mA
- Light source: LED RGB with wavelengths 640 nm, 525 nm, 470 nm
- Housing material: ABS, Optics material: PMMA
- Connection type: Male M8, 4-pin connector
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 640 nm, 525 nm, 470 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Vertical light spot direction with 1.9 mm x 9.4 mm spot size
- Teach-in button for easy adjustment and teach-in static/dynamic modes
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS and PMMA materials extend product life and reduce waste
- IP67 rating ensures long-term reliability in harsh environments, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSM-WP111C1P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
