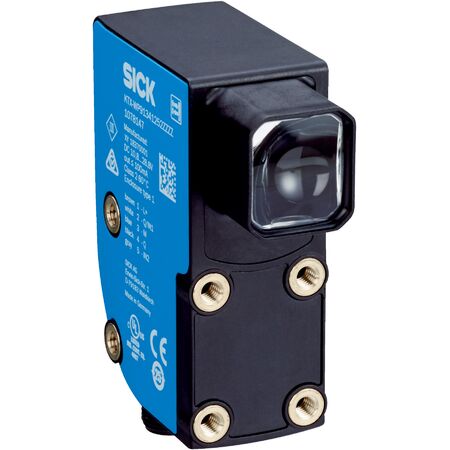

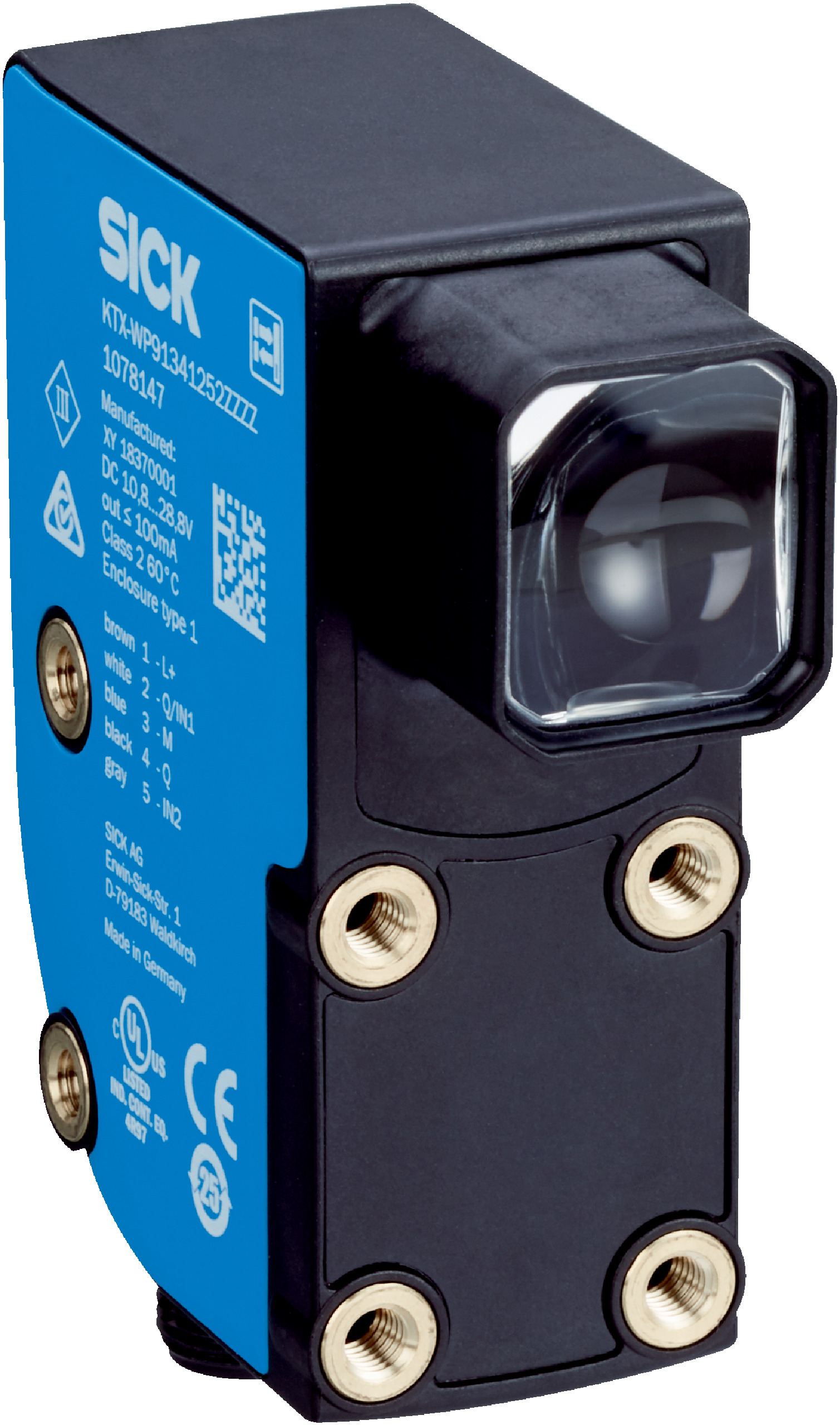

RGB LED Sensor | Industrial Proximity Sensor | IP67 Rated | 40mm Sensing Distance | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a sensing distance of up to 40 mm with ±3 mm tolerance. With an IP67 rating for dust and water resistance, this sensor is perfect for object detection and positioning in quality control systems. Its energy-efficient LED light source and multiple teach-in modes make it a reliable choice for machine safety and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED, RGB (470 nm, 525 nm, 625 nm)
- Light spot size: 3.9 mm x 0.9 mm
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Connection type: Plug, M12, 5-pin
- Dimensions (H x L x W): 53mm x 78.5mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 40 mm with ±3 mm tolerance
- LED light source with RGB colors (470 nm, 525 nm, 625 nm)
- Light emission from the long side of housing with a small light spot size
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Adjustable delay time and light/dark switching output function
- IO-Link communication interface with digital inputs and outputs
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and configuration of IO-Link parameters.
Applications
- Industrial automation for object detection and positioning
- Quality control systems requiring precise sensing
- Machine safety and monitoring applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Warranty details available upon request from SICK, typically including coverage against manufacturing defects.
Available Now
The SICK KTX-WB9134125AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable RGB LED detection.
