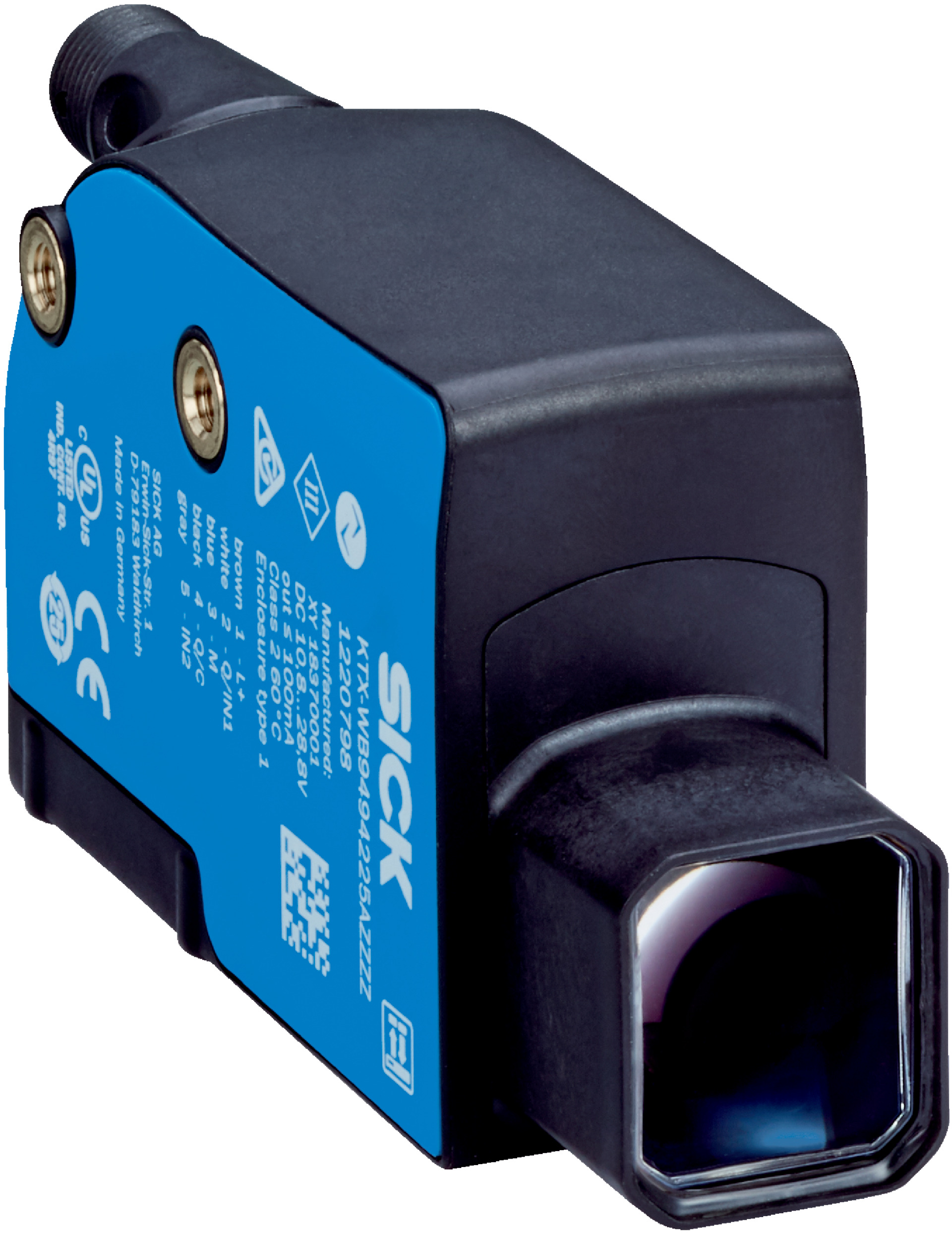

RGB LED Sensor | Industrial Proximity Sensor | IP67 Rated | 50 kHz Switching Frequency | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a high switching frequency of 50 kHz. With a sensing distance of up to 40 mm and adjustable delay time, it's perfect for quality control and position sensing in machinery. Built for reliability, this sensor ensures low power consumption and is ideal for various applications in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: PNP with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 3.9 mm x 0.9 mm
- Connection: Male M12, 4-pin connector
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 40 mm with ±3 mm tolerance
- Light/dark switching output function
- Adjustable delay time
- 1-point, 2-point teach-in, teach-in dynamic, and auto mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistant according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from manufacturer.
Available Now

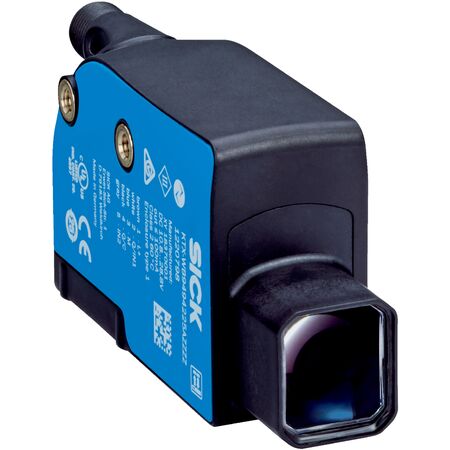

The SICK KTX-WP91342242ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
