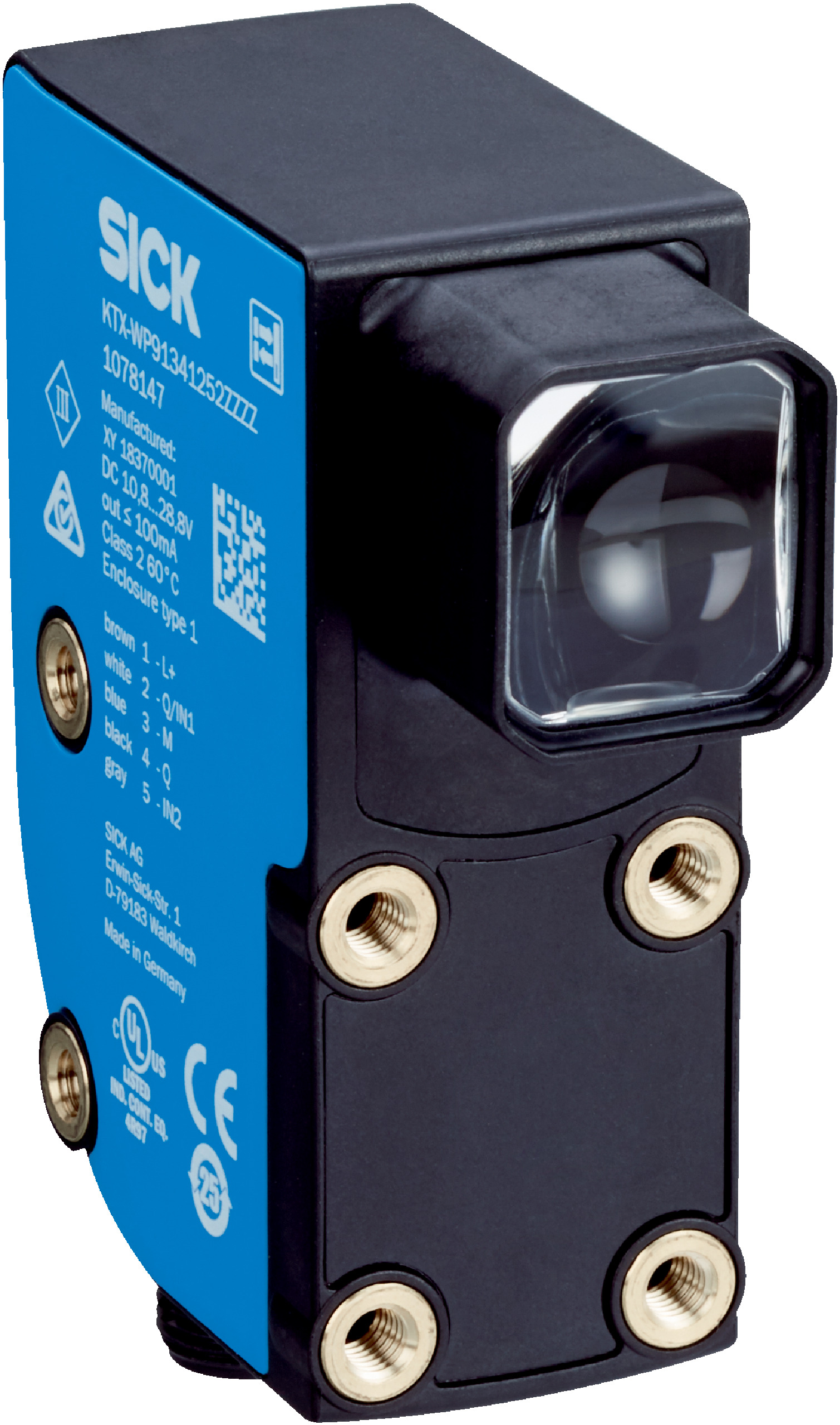

RGB LED Sensor | Industrial Proximity Sensor | IP67 Rated | Adjustable Delay | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a sensing distance of up to 70 mm and multiple teach-in modes for versatile applications. With an IP67 rating for dust and water resistance, this sensor is perfect for quality control and position sensing in conveyor systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 70 mm with ±6 mm tolerance
- Light source: LED, RGB (470 nm, 525 nm, 625 nm)
- Light emission: Long side of housing, round light spot Ø 10 mm
- Teach-in modes: 1-point, 2-point, dynamic, auto
- Output function: Light/dark switching with adjustable delay
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III, IP67 enclosure
- Connection type: Plug, M12, 5-pin
- Operating temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 53mm x 78.5mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 70 mm with ±6 mm tolerance
- LED light source with RGB colors (470 nm, 525 nm, 625 nm)
- Light emission from long side of housing with round, large light spot (Ø 10 mm)
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Light/dark switching output function with adjustable delay time
- IO-Link communication interface with digital inputs and outputs
- Push-pull switching output (PNP/NPN) with max output current 100 mA
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in conveyor systems
- Special applications requiring long sensing distance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

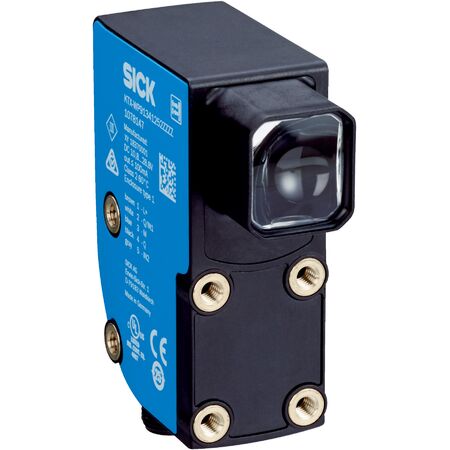

The SICK KTX-WB9A64125AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable RGB LED detection.
