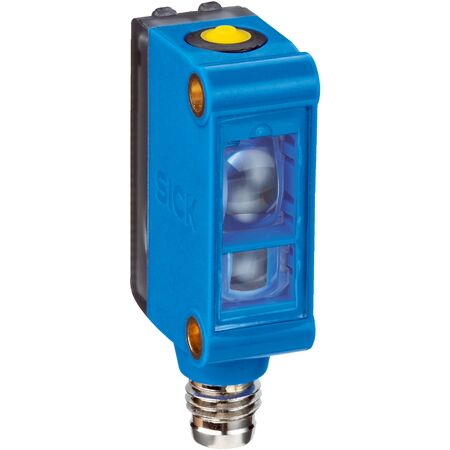

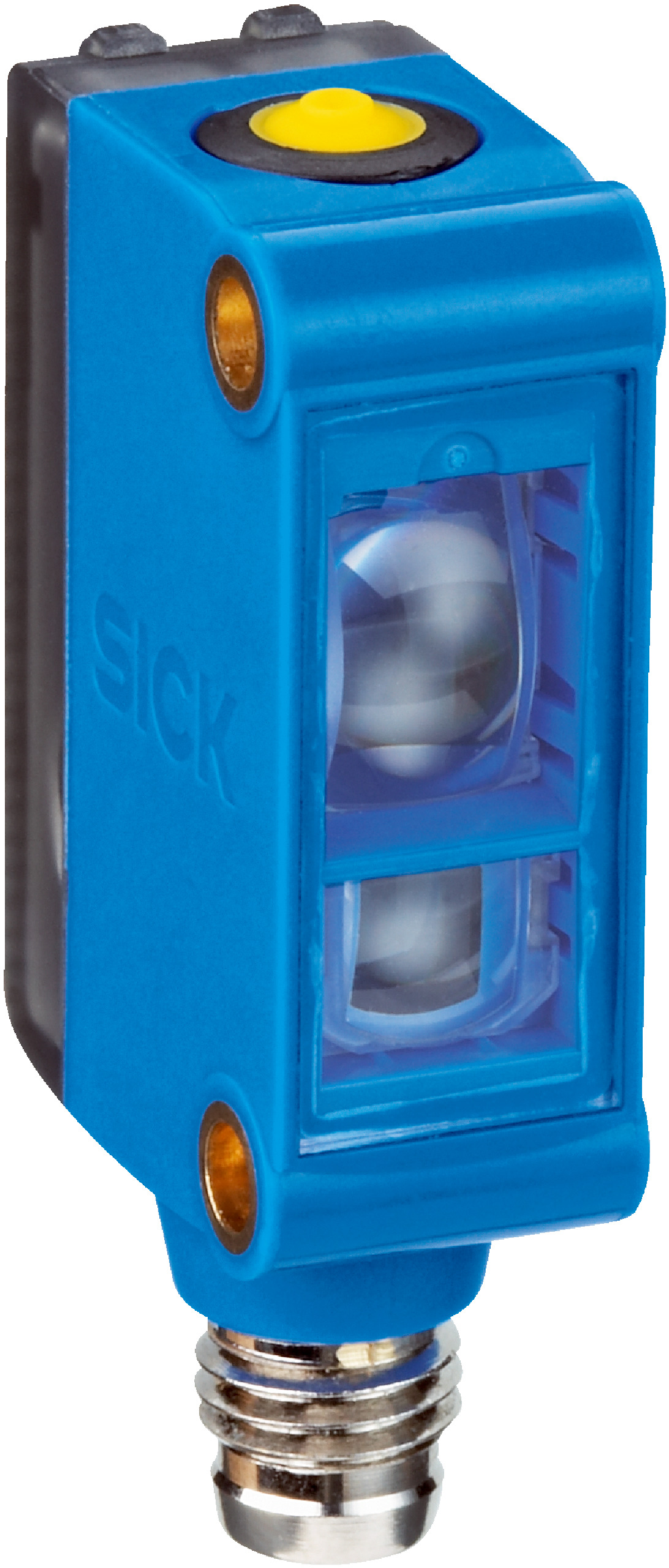

RGB LED Sensor | SICK KTM-WP117A1P | IP67 Rated | 15 kHz Switching Frequency | by SICK
The RGB LED Sensor is designed for precise color sensing and object detection in industrial automation. With a sensing distance of up to 12.5 mm and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for quality control and robotics applications, this sensor features a fast response time of 32 µs and adjustable settings via cable or IO-Link, making it a versatile choice for modern manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 12.5 mm with ±3 mm tolerance
- Light source: LED, RGB (470 nm, 525 nm, 625 nm)
- Light emission: Long side of housing
- Light spot size: 1.6 mm x 9.5 mm
- Adjustment methods: Cable, IO-Link, Teach-in button
- IO-Link V1.1 with 38.4 kbit/s data rate, 2.3 ms cycle time
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Switching output: PNP, max 50 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Housing material: ABS
- Optics material: PMMA
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a light spot size of 1.6 mm x 9.5 mm
- Adjustable via cable, IO-Link, and teach-in button
- IO-Link V1.1 interface with 38.4 kbit/s data transmission rate
- High switching frequency of 15 kHz and fast response time of 32 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- LED indicators for power and switching output status
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and machine vision systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WP117A1P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color sensing applications.
