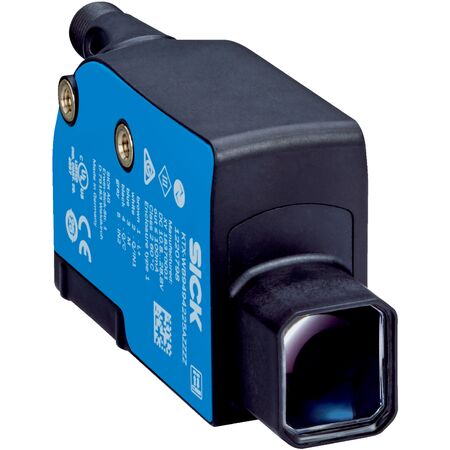

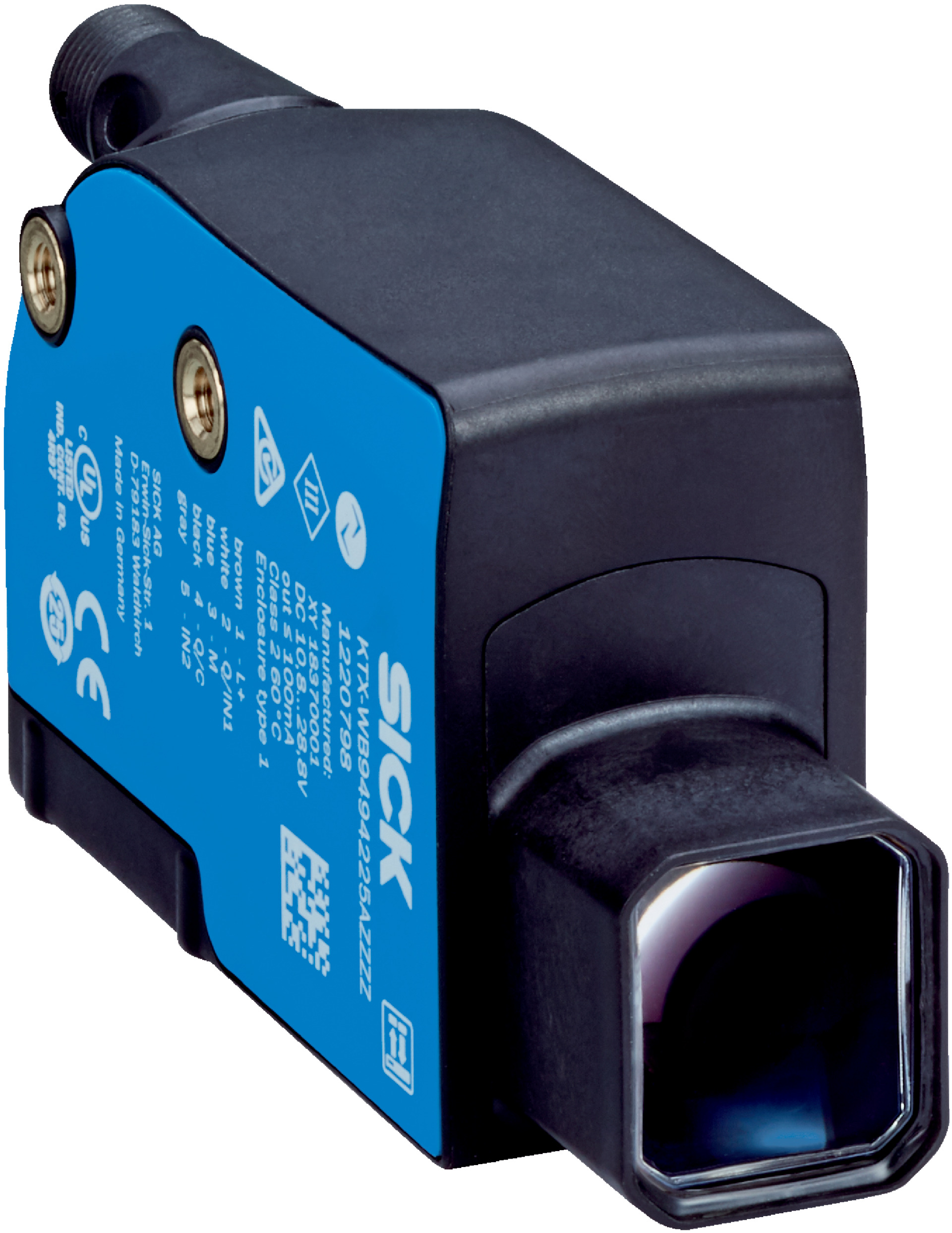

RGB LED Sensor | IP67 Rated | 40mm Sensing Distance | 50kHz Switching Frequency | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a sensing distance of up to 40mm and a fast 50kHz switching frequency. With an IP67 rating for dust and water resistance, this sensor is perfect for object detection, quality control, and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Switching output: NPN with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 3.9 mm x 0.9 mm
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Male M12, 4-pin connector
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Enclosure rating: IP67
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 40 mm with ±3 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with vertical light spot direction
- 1-point, 2-point teach-in, teach-in dynamic, and auto mode
- Light/dark switching output function with adjustable delay time
- Long sensing distance and standard key lock setting
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in robotics
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WN91342242ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
