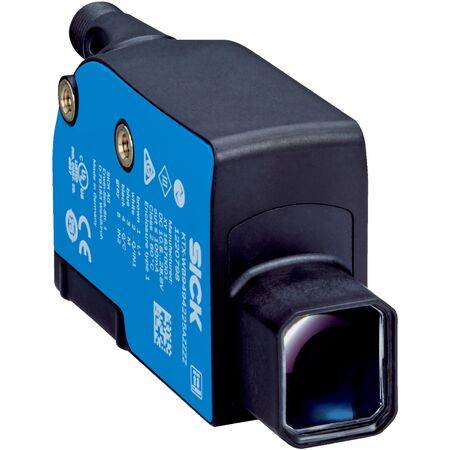

RGB LED Sensor | IP67 Rated | 40mm Sensing Distance | Push-Pull Output | by SICK
The RGB LED Sensor is designed for precise object detection and positioning in industrial automation. With a sensing distance of up to 40 mm and an IP67 rated enclosure, it operates reliably in harsh environments. Ideal for quality control and machine safety applications, this sensor features multiple teach-in modes and low power consumption, making it a smart choice for efficient monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Jitter: 5 µs
- Output type: Push-pull PNP/NPN, HIGH = Uv - 3 V, LOW ≤ 3 V
- Output current max: 100 mA
- Input types: Teach-in, blanking, fine/coarse, light/dark
- Retention time: 25 ms non-volatile memory
- Housing material: VISTAL®
- Optics material: Glass
- Connection: M12, 5-pin plug
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance up to 40 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with vertical light spot direction
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Adjustable delay time and light/dark switching output function
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for robust operation in harsh environments
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor device standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and positioning
- Quality control systems requiring precise sensing
- Machine safety and monitoring applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9134225UZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
