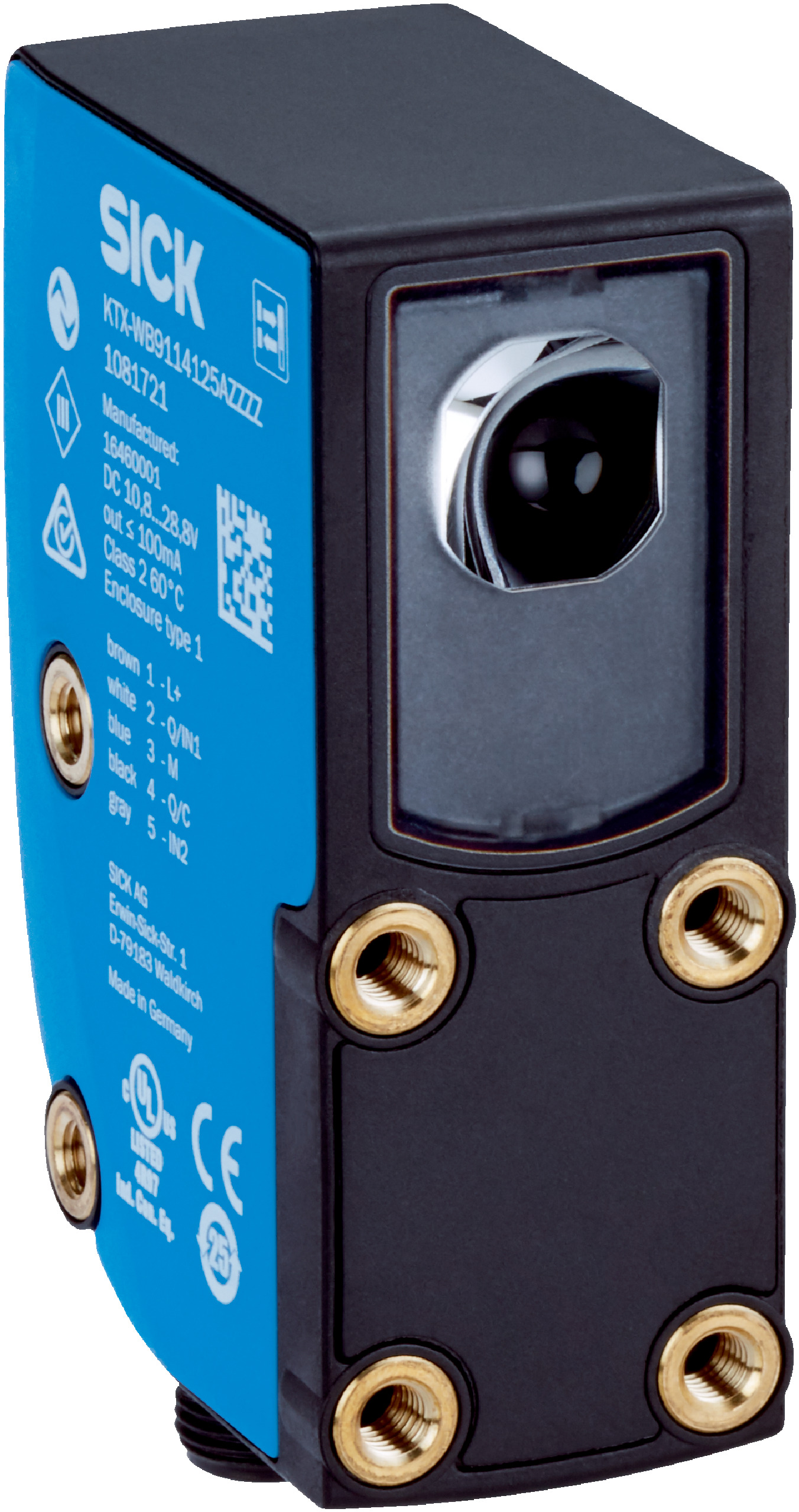

RGB LED Sensor | IP67 Rated | 50 kHz Switching Frequency | 10 µs Response Time | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a high switching frequency of 50 kHz and a fast response time of 10 µs. With an IP67 enclosure rating, it excels in harsh environments, making it ideal for object detection and machine safety applications. This sensor supports multiple teach-in modes and offers both analog and digital outputs, ensuring precise sensing for quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output current max: 100 mA
- Light emission: Long side of housing
- Light spot size: 3.8 mm x 0.9 mm
- Connection type: Plug, M12, 5-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Housing material: VISTAL®
- Optics material: COP
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 13 mm with ±5 mm tolerance
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Analog voltage output (0 V to 10 V) and digital output with push-pull PNP/NPN switching
- Compact housing with IP67 enclosure rating for harsh environments
- High switching frequency of 50 kHz and fast response time of 10 µs
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection and positioning
- Quality control systems requiring precise sensing
- Machine safety and monitoring applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTX-WB9214125UZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
