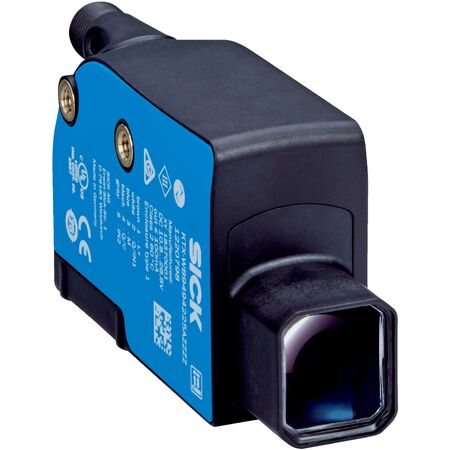

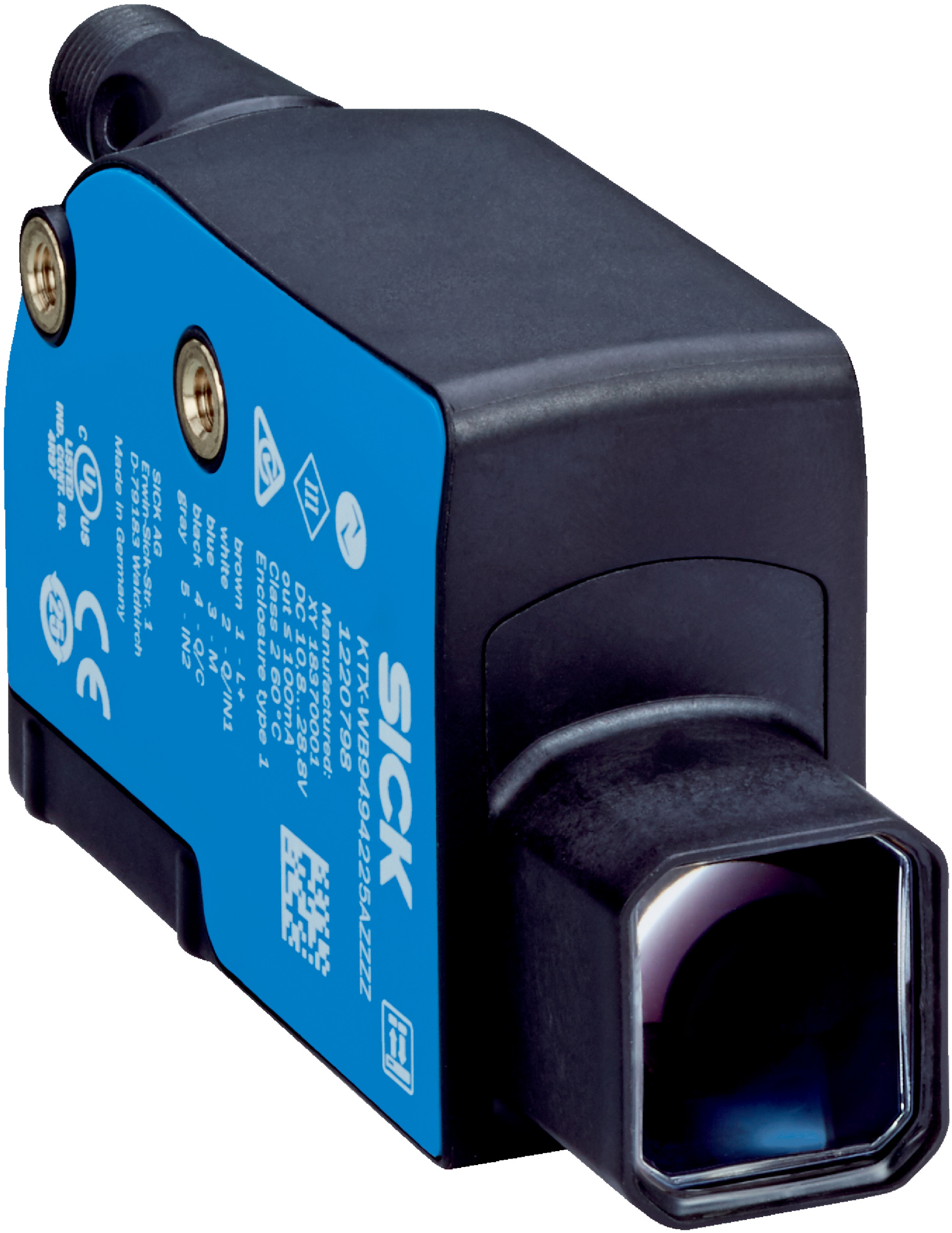

RGB LED Sensor | IP67 Rated | 50 kHz Switching Frequency | 10 µs Response Time | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a fast 50 kHz switching frequency. With a response time of just 10 µs and a sensing distance of up to 40 mm, this sensor is perfect for quality control, position sensing in robotics, and material handling applications. Its durable design ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: PNP with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 3.9 mm x 0.9 mm
- Connection type: Plug, M12, 5-pin
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Shock resistance: 30 g/11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 40 mm with ±3 mm tolerance
- 1-point and 2-point teach-in modes, dynamic teach-in, and auto mode
- Light/dark switching output function with adjustable delay time
- Long sensing distance capability
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistant according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in robotics
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK KTX-WP91342252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable and precise detection.
