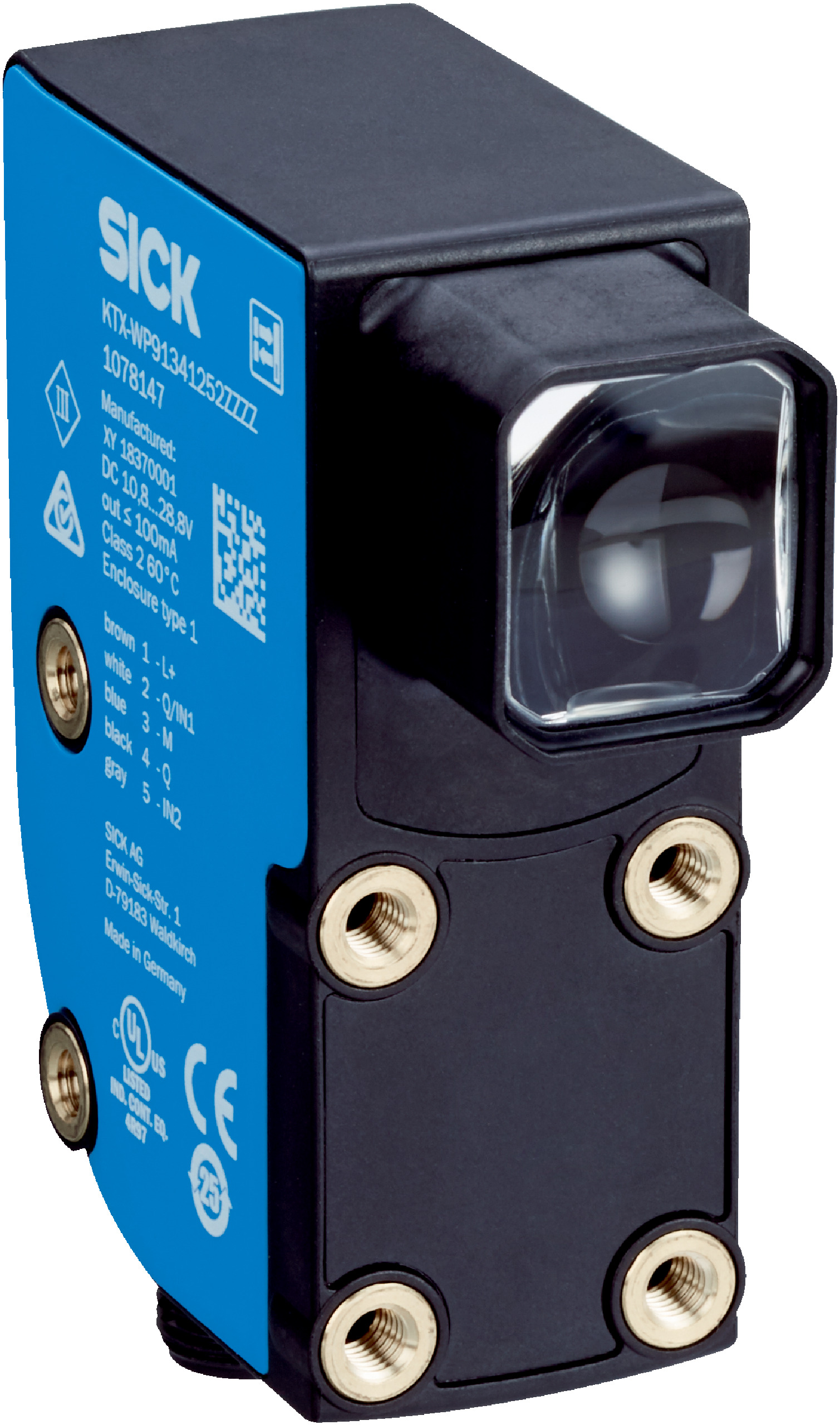

RGB LED Sensor | IP67 Rated | 50 kHz Switching Frequency | 10 µs Response Time | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a fast 50 kHz switching frequency. With a response time of just 10 µs and a sensing distance of up to 40 mm, it's perfect for quality control and position sensing in production lines. Built for durability and efficiency, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: NPN with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Housing material: VISTAL®
- Optics material: Glass
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Shock resistance: 30 g/11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 40 mm with ±3 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with vertical light spot direction
- 1-point and 2-point teach-in modes, dynamic teach-in, and auto mode
- Adjustable delay time and light/dark switching output function
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of teach-in modes.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in production lines
- Special applications requiring long sensing distance
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable IP67 housing reduces waste by extending product lifespan
- Photobiological safety certified to IEC EN 62471 standards
Warranty Information
Warranty details available upon request from SICK, typically including coverage against manufacturing defects.
Available Now

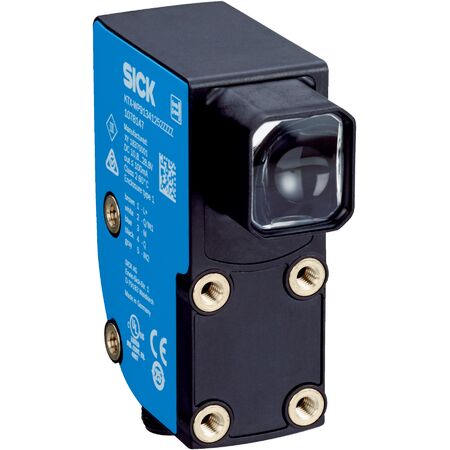

The SICK KTX-WN91341242ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
