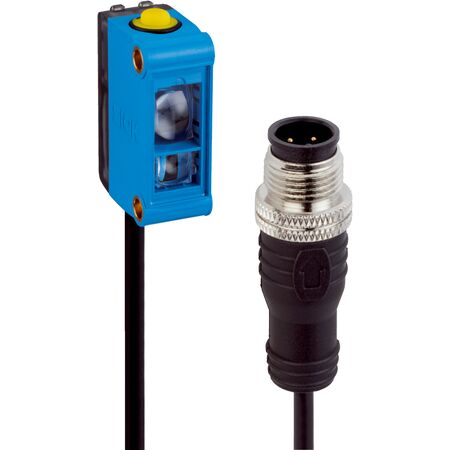

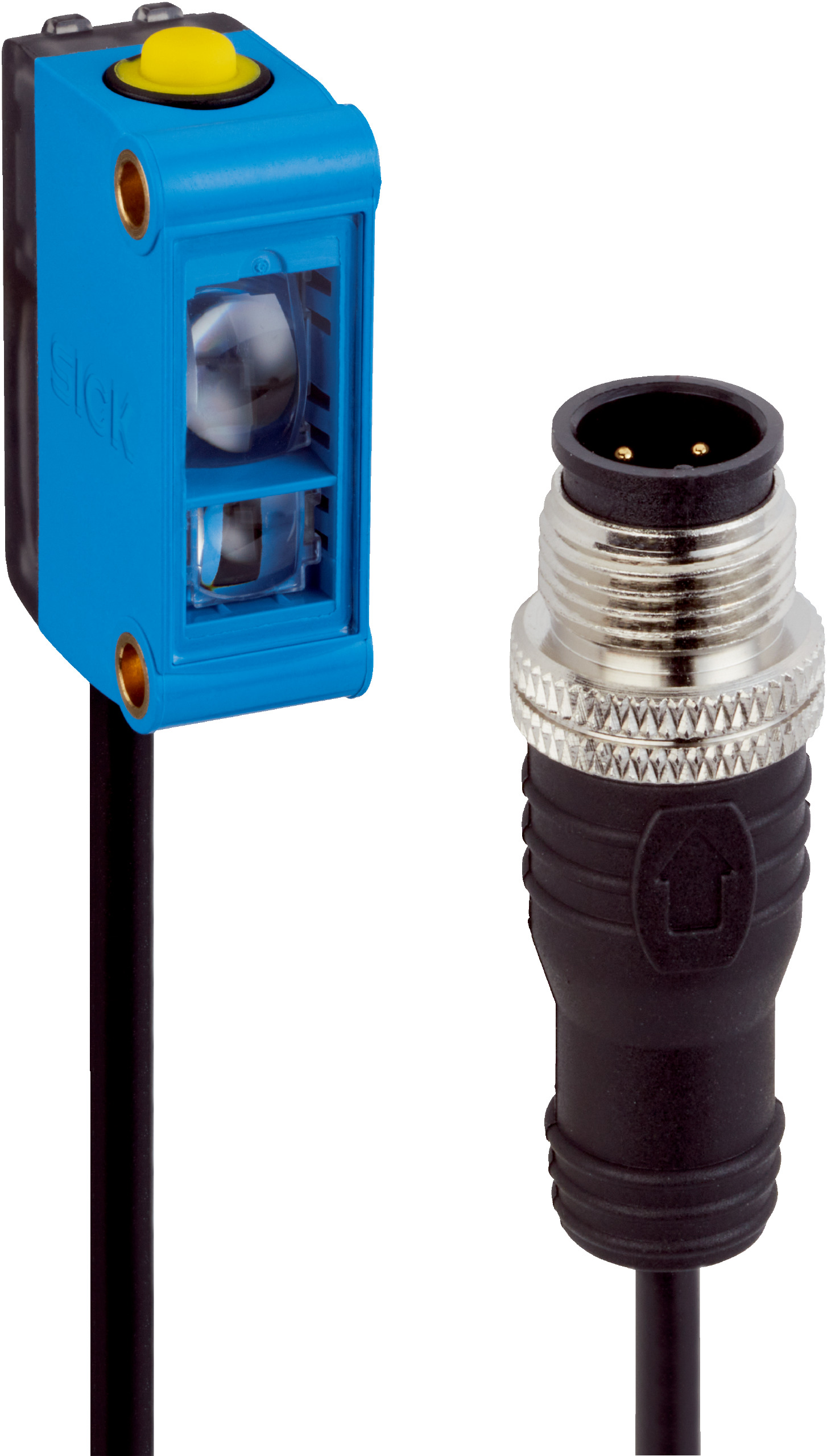

RGB LED Sensor | IP67 Rated | IO-Link Color Detection | PNP Switching | by SICK
The RGB LED Sensor is designed for precise color detection in industrial automation, featuring an IP67 rating for dust and water resistance. With a sensing distance of up to 15 mm and a fast response time of 300 µs, it's perfect for quality control and process monitoring applications. The sensor supports IO-Link communication for easy integration and configuration, making it ideal for technicians and electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Output current max: < 100 mA
- Light source: LED RGB with wavelengths 640 nm, 525 nm, 470 nm
- Switching output: PNP with light/dark switching
- Connection type: Cable with M12 male connector, 4-pin, 0.2 m length
- Housing material: ABS, Optics material: PMMA
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 15 mm with ±4 mm tolerance
- RGB LED light source with wavelengths 640 nm, 525 nm, 470 nm
- Vertical light spot direction with 4.9 mm x 10.1 mm spot size
- Adjustable via teach-in button, cable, or IO-Link
- IO-Link V1.1.0 interface with 38.4 kbit/s data transmission rate
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of IO-Link communication and sensor integration.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Color sensing and sorting applications
- Process monitoring with IO-Link communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
- Supports IO-Link for smart communication reducing wiring and installation waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSM-WP1B7A2P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
