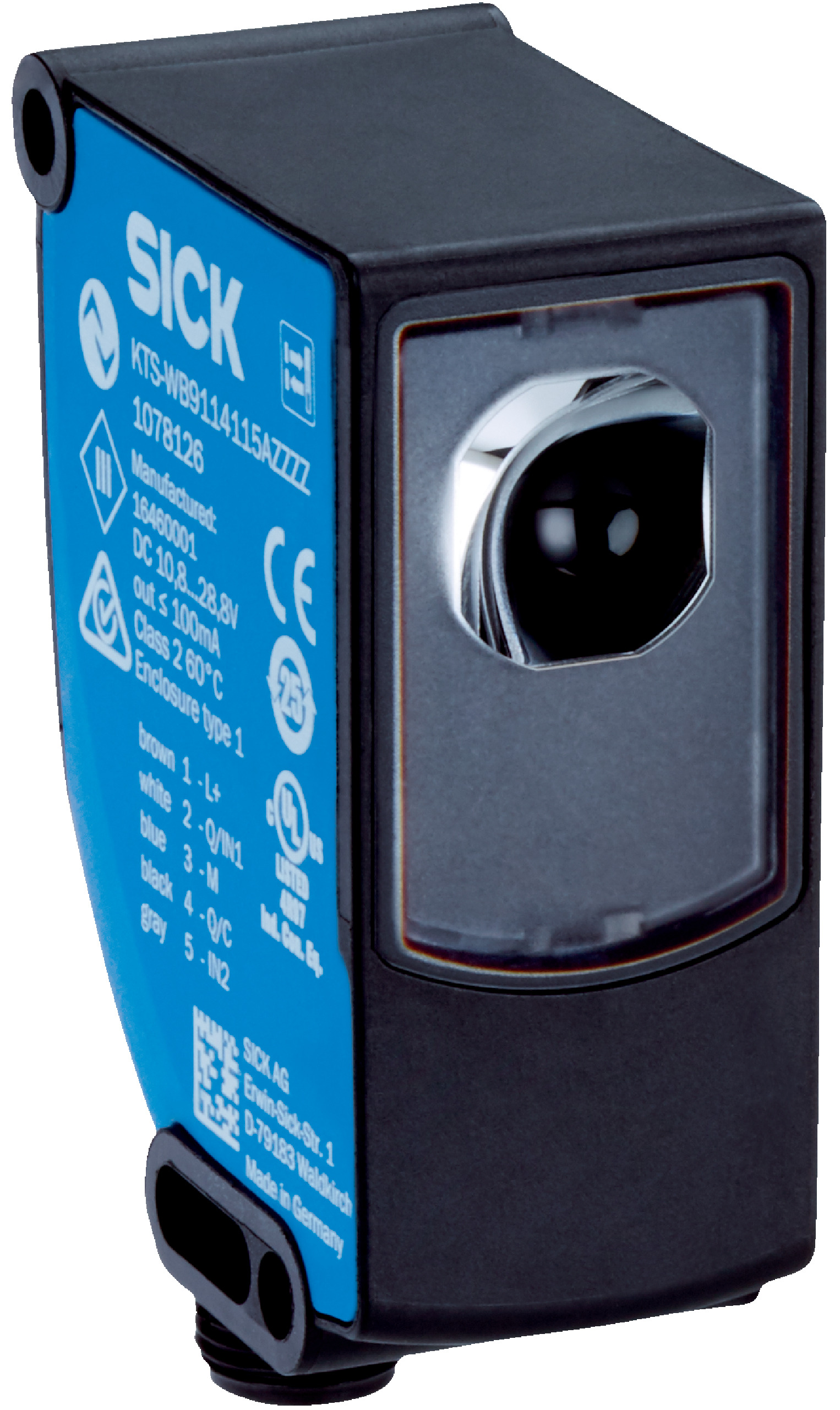

RGB LED Sensor KTS-WB9214115AZZZZ | IP67 Rated | 50 kHz Switching Frequency | 13 mm Sensing Distance | by SICK
The RGB LED Sensor KTS-WB9214115AZZZZ is designed for industrial automation, featuring a robust IP67 rating and a sensing distance of up to 13 mm. With a fast 50 kHz switching frequency and multiple teach-in modes, this sensor is perfect for object detection in harsh environments, ensuring reliable performance and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Jitter: 5 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Teach-in modes: 1-point, 2-point, dynamic, auto
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Plug, M12, 5-pin
- Housing material: VISTAL®
- Optics material: COP
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with middle housing design
- Sensing distance up to 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from the long side of housing with horizontal light spot
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Push-pull PNP/NPN switching output with 100 mA max output current
- IO-Link communication interface with detailed process data structure
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure suitable for harsh environments
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with IO-Link devices and industrial sensor wiring to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring RGB LED indication
- Environments requiring IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTS-WB9214115AZZZZ sensor is available for immediate purchase, ideal for industrial automation and object detection applications requiring reliable RGB LED sensing.
