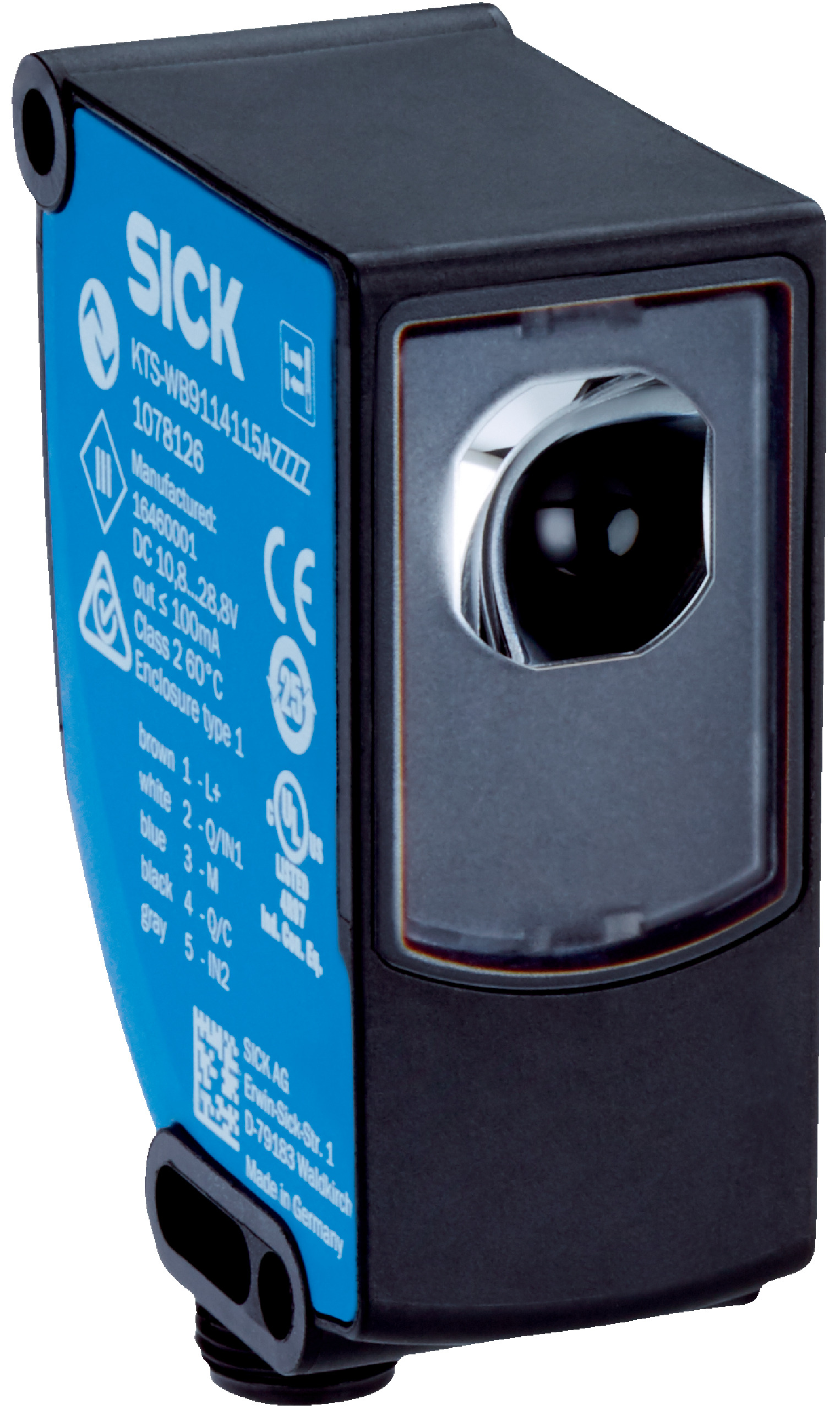

RGB LED Sensor KTS-WB9224115AZZZZ | IP67 Rated | IO-Link Communication | by SICK
The RGB LED Sensor KTS-WB9224115AZZZZ is designed for industrial automation, featuring a robust IP67 enclosure and IO-Link communication for seamless integration. With a sensing distance of up to 25 mm and a fast response time of 10 µs, this sensor is perfect for object detection in demanding environments, ensuring reliable performance and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Jitter: 5 µs
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 5.3 mm x 1.2 mm
- Switching output: Push-pull PNP/NPN, max 100 mA
- Connection type: Plug, M12, 5-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with middle housing design
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 25 mm with ±6 mm tolerance
- Light/dark switching output function with adjustable delay time
- IO-Link communication interface with digital inputs and outputs
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring RGB LED indication
- Environments requiring IP67 rated sensors with robust housing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V to 28.8 V DC
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTS-WB9224115AZZZZ sensor is available for immediate purchase, ideal for industrial automation and standard sensing applications.
