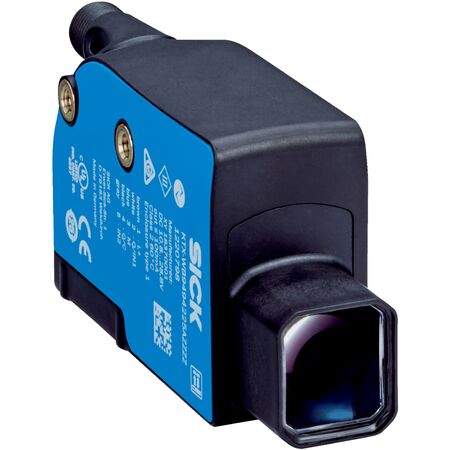

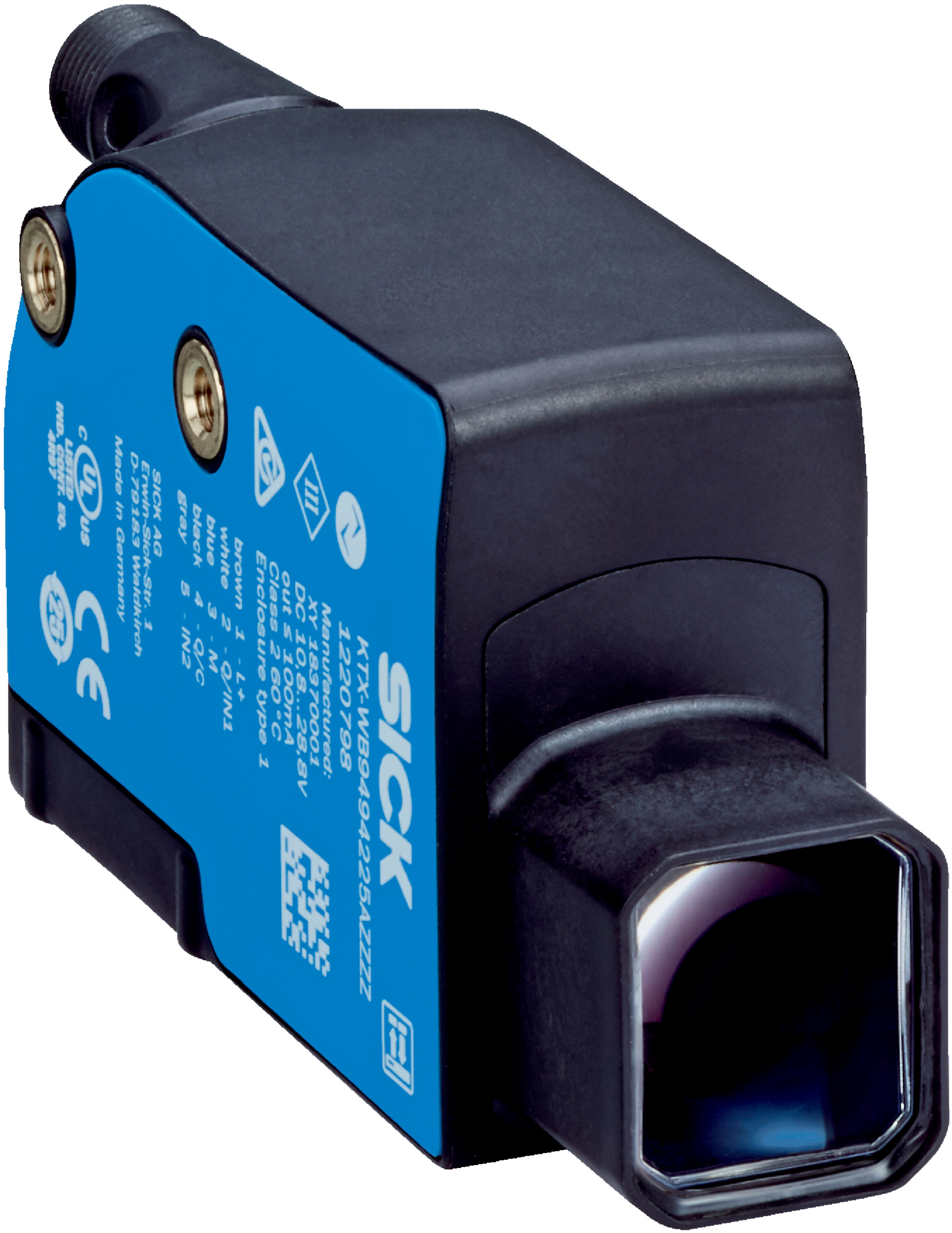

RGB LED Sensor KTX-WB9134225AZZZZ | IP67 Rated | 40mm Sensing Distance | IO-Link Communication | by SICK
The RGB LED Sensor KTX-WB9134225AZZZZ is designed for precise object detection in industrial automation, featuring a sensing distance of up to 40 mm and an IP67 rated enclosure for harsh environments. With a fast response time of 10 µs and multiple teach-in modes, this sensor is perfect for quality control, robotics, and material handling applications, ensuring reliable performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light spot size: 3.9 mm x 0.9 mm
- Switching frequency: 50 kHz
- Response time: 10 µs
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Connection type: Plug, M12, 5-pin
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 40 mm with ±3 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with vertical light spot direction
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Adjustable delay time and light/dark switching output function
- IO-Link communication interface with digital inputs and outputs
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for harsh environments
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in robotics
- Material handling and logistics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9134225AZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
