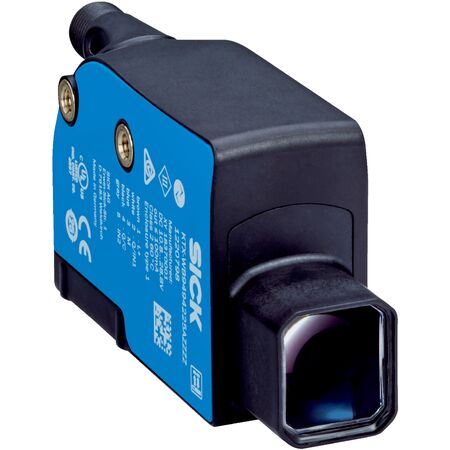

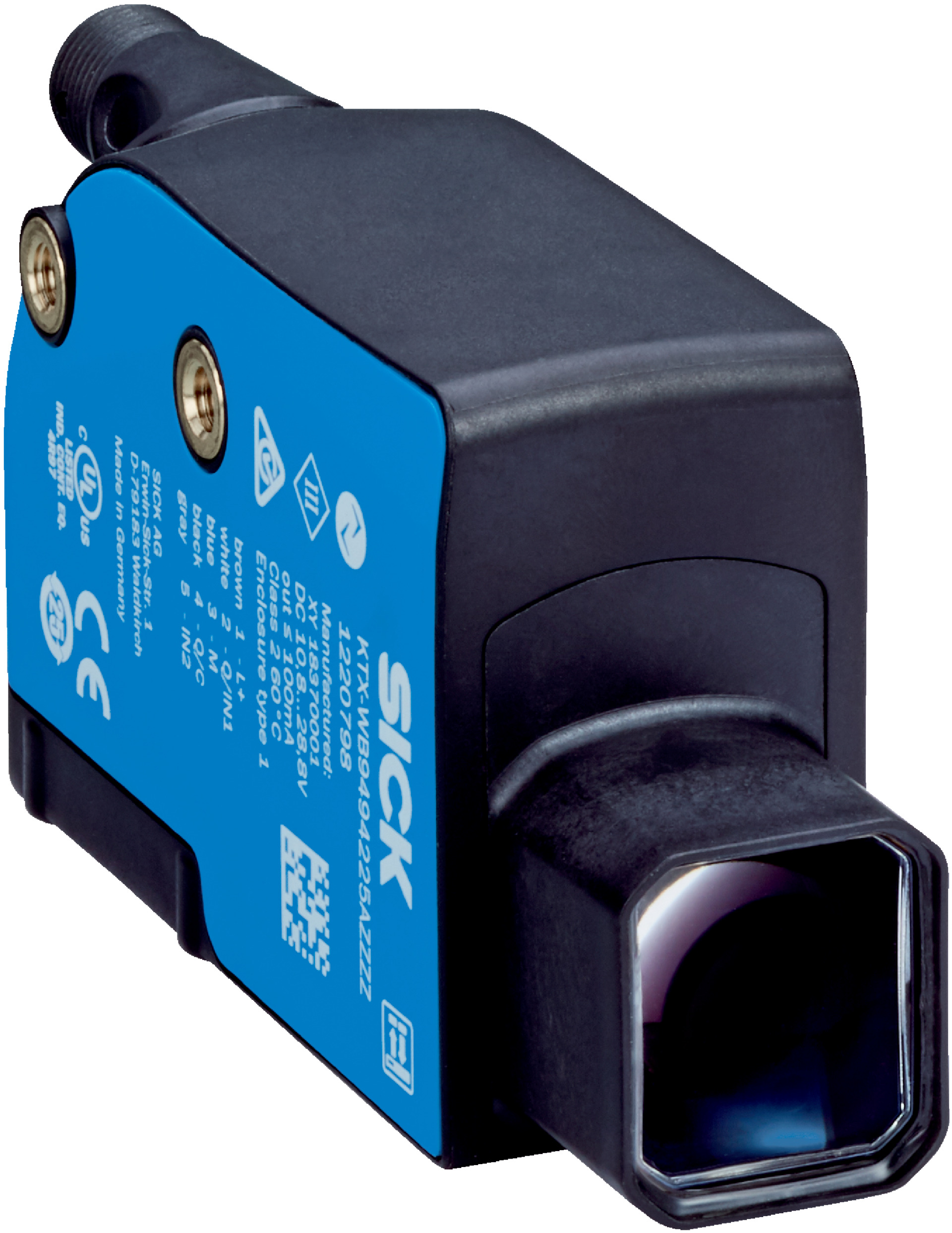

RGB LED Sensor KTX-WB9494225AZZZZ | IP67 Rated | 150mm Sensing Distance | IO-Link Communication | by SICK
The RGB LED Sensor KTX-WB9494225AZZZZ is designed for industrial automation, offering a sensing distance of up to 150 mm with multiple teach-in modes. With an IP67 rating and robust housing, it ensures reliable performance in harsh environments, making it ideal for quality control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Ripple: ≤ 5 V pp
- Switching frequency: 6.25 kHz
- Response time: 80 µs
- Jitter: 40 µs
- Output type: Push-pull PNP/NPN
- Output current max: 100 mA
- Teach-in modes: 1-point, 2-point, dynamic, auto
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: M12 5-pin plug
- Housing material: VISTAL®
- Optics material: Glass
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock resistance: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 150 mm with ±8 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with 3.3 mm round light spot
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Light/dark switching output function with adjustable delay time
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for robust environmental protection
- Operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
- Equipped with IO-Link communication interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Material handling and logistics
- Special applications requiring long sensing distance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9494225AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable RGB detection and IO-Link communication.
