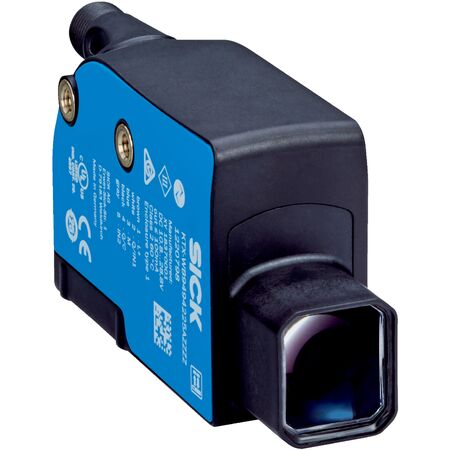

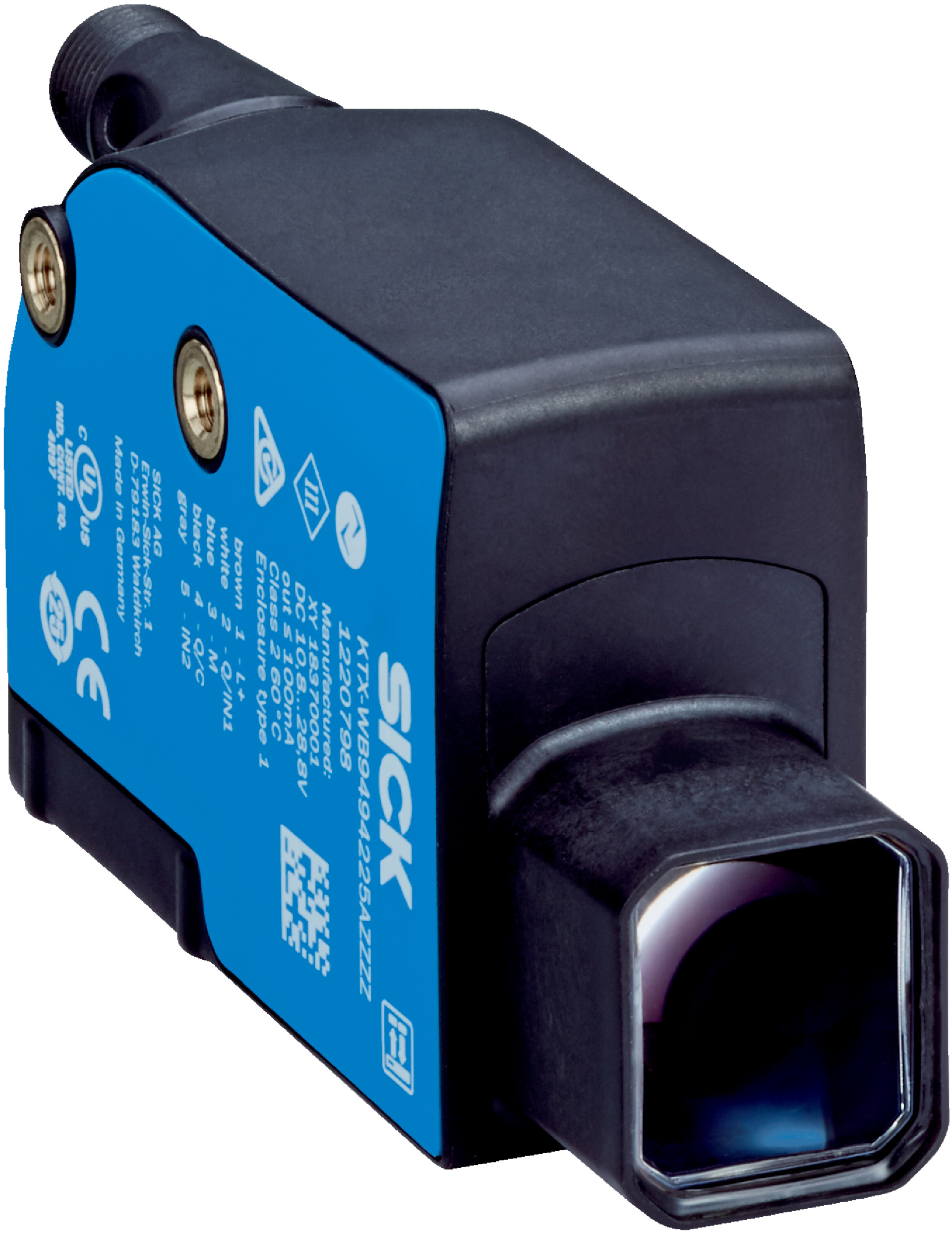

RGB LED Sensor KTX-WP92342242ZZZZ | IP67 Rated | 50 kHz Switching Frequency | PNP Output | by SICK
The RGB LED Sensor KTX-WP92342242ZZZZ is designed for industrial automation, featuring a robust IP67 enclosure and a 50 kHz switching frequency. With a sensing distance of up to 40 mm and dynamic teach-in modes, it's perfect for quality control, robotics, and material handling applications. Built for durability and low power consumption, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: PNP with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Housing material: VISTAL®
- Optics material: Glass
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock resistance: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 40 mm with ±3 mm tolerance
- 1-point and 2-point teach-in modes with dynamic and auto modes
- Light/dark switching output function
- Adjustable delay time
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Photobiological safety certified (IEC EN 62471)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in robotics
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V to 28.8 V DC
- Durable IP67 housing reduces need for frequent replacements
- Photobiological safety certification ensures safe operation
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK KTX-WP92342242ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
