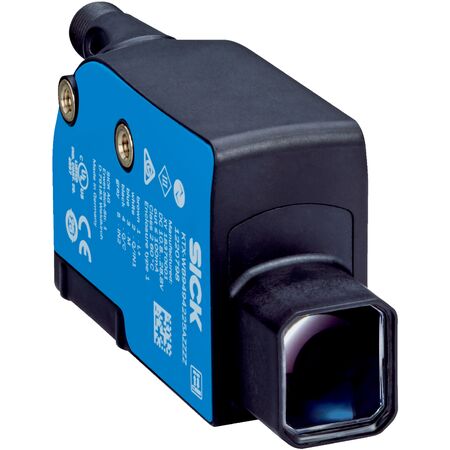

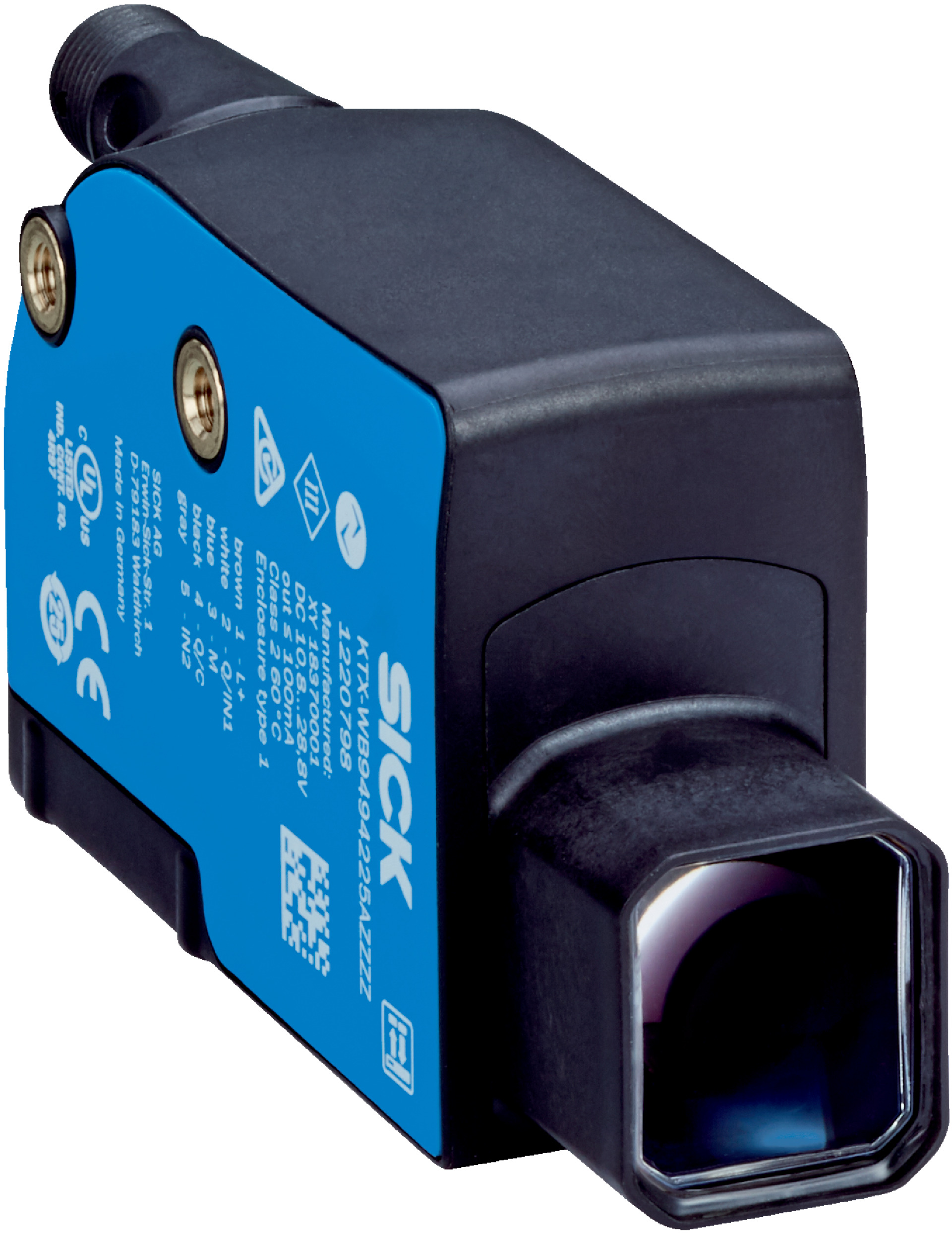

RGB LED Sensor | Long Distance Proximity | IP67 Rated | 70 mm Sensing Distance | by SICK
The RGB LED Sensor is designed for long-distance proximity detection, featuring a sensing distance of up to 70 mm with ±6 mm tolerance. Ideal for industrial automation and quality control, this sensor offers a robust IP67 rated housing and fast response time of 10 µs, ensuring reliable performance in various applications. With adjustable delay time and multiple teach-in modes, it’s perfect for precise sensing in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 70 mm with ±6 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light emission: Short device side with Ø 10 mm round light spot
- Output: Analog voltage 0-10 V and digital push-pull PNP/NPN
- Supply voltage: 10.8 V DC to 28.8 V DC with ≤ 5 V ripple
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Protection class: III
- Enclosure rating: IP67
- Connection: M12, 5-pin plug
- Weight: 94 g
- Operating temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Long sensing distance up to 70 mm with ±6 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, and 625 nm
- Adjustable delay time and multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Push-pull PNP/NPN switching output with 100 mA max output current
- High switching frequency of 50 kHz and fast response time of 10 µs
- Robust IP67 rated housing made of VISTAL® with glass optics
- Protection against reverse polarity, short-circuit, and interference pulses
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Quality control and inspection systems
- Material handling and packaging lines
- Robotics and manufacturing processes requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9A64225UZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
