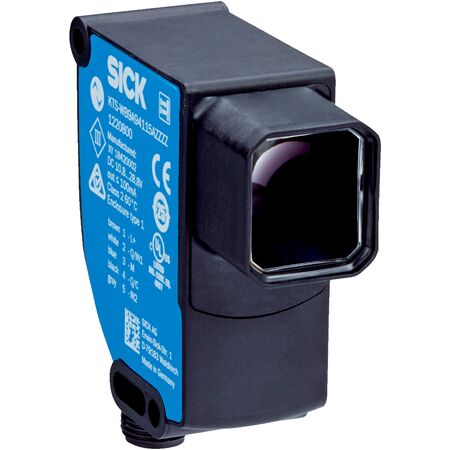

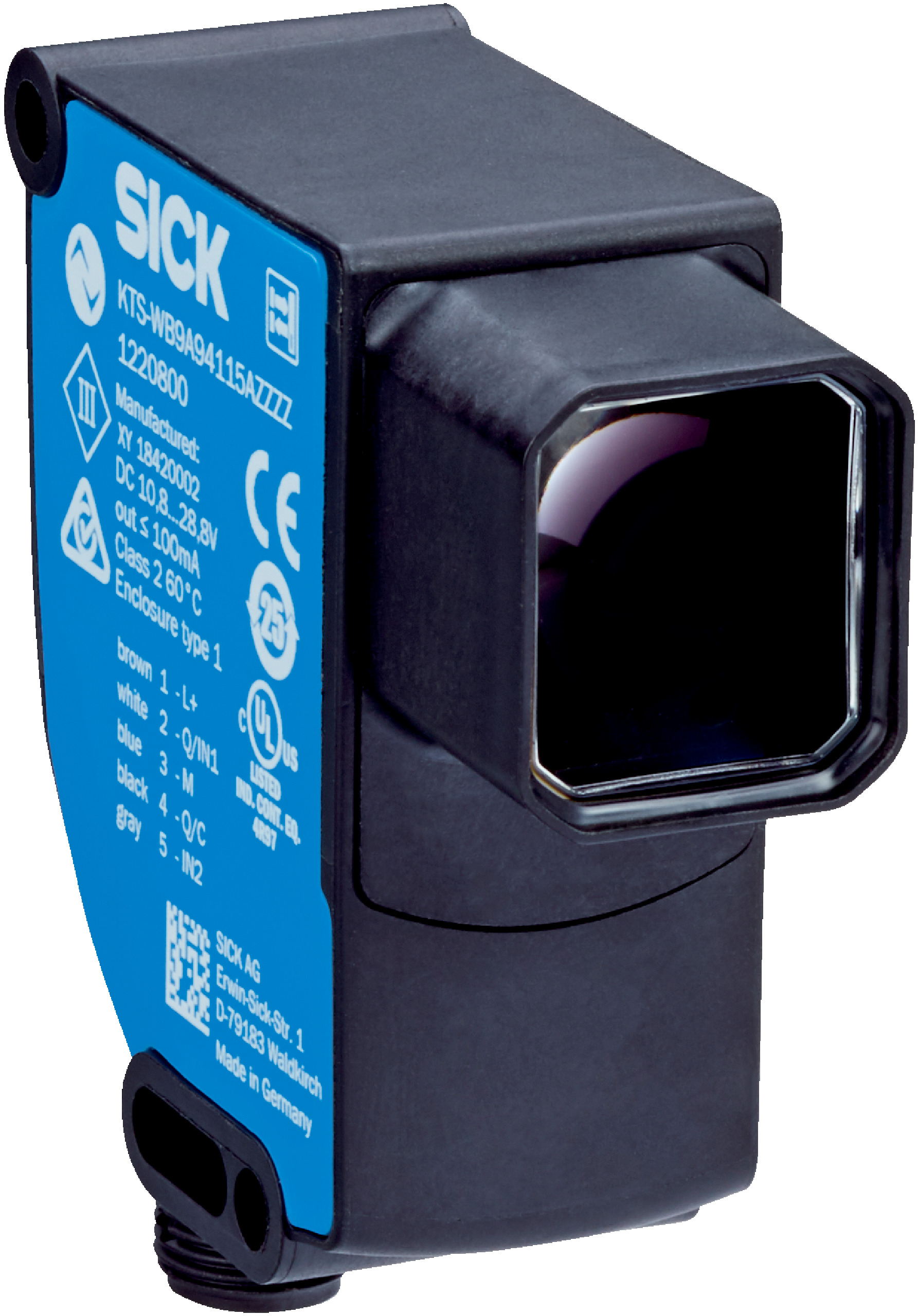

RGB LED Sensor | Long Distance Proximity | IP67 Rated | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a long sensing distance of up to 150 mm and an IP67 rated enclosure for dust and water protection. With a versatile LED RGB light source and multiple teach-in modes, this sensor is perfect for quality control and process monitoring applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 150 mm with ±8 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light emission: Long side of housing with Ø 3.3 mm round light spot
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 6.25 kHz
- Response time: 80 µs
- Jitter: 40 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Connection type: Plug, M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with long sensing distance up to 150 mm
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light/dark switching output function with adjustable delay time
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Push-pull switching output (PNP/NPN) with max output current 100 mA
- IO-Link communication interface for advanced device integration
- Robust housing made of VISTAL® with glass optics
- IP67 rated enclosure for protection against dust and water
- Wide ambient operating temperature range from -20 °C to +60 °C
- Shock resistant according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control and process monitoring
- Standard sensing applications requiring long sensing distance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTS-WB9494115AZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable long-distance detection.
