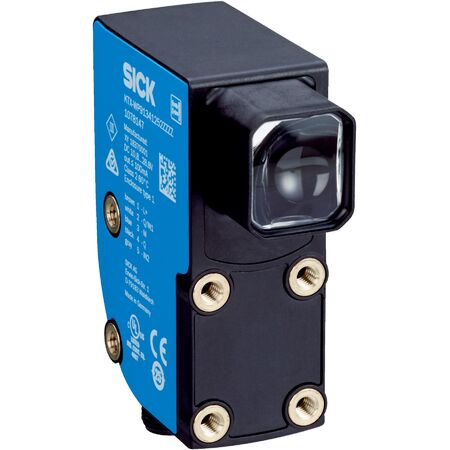

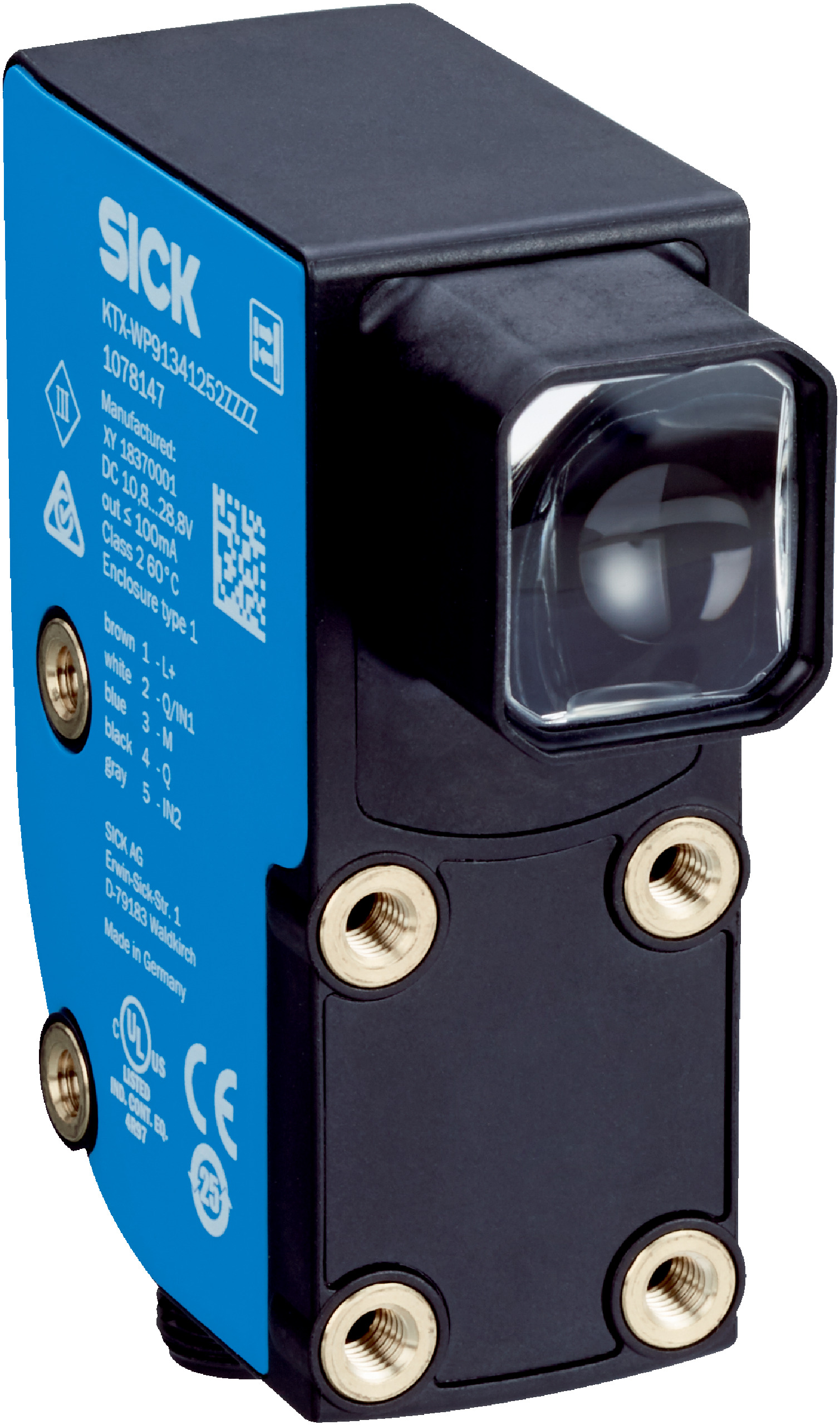

RGB LED Sensor | Long Distance Proximity | IP67 Rated | Teach-in Modes | by SICK
The RGB LED Sensor is designed for precise object detection with a sensing distance of up to 150 mm and multiple teach-in modes, making it ideal for industrial automation and quality control applications. With an IP67 rating for dust and water protection, this robust sensor ensures reliable performance in challenging environments, perfect for material handling and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 150 mm with ±8 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light spot size: Ø 3.3 mm, round
- Teach-in modes: 1-point, 2-point, dynamic, auto
- Output function: Light/dark switching
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 6.25 kHz
- Response time: 80 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Connection type: Plug, M12, 5-pin
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 150 mm with ±8 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with round light spot Ø 3.3 mm
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Adjustable delay time and light/dark switching output function
- IO-Link communication interface with digital inputs and outputs
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- Robust housing material VISTAL® and glass optics
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Material handling and logistics
- Special applications requiring long sensing distance
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK KTX-WB9494125AZZZZ sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
