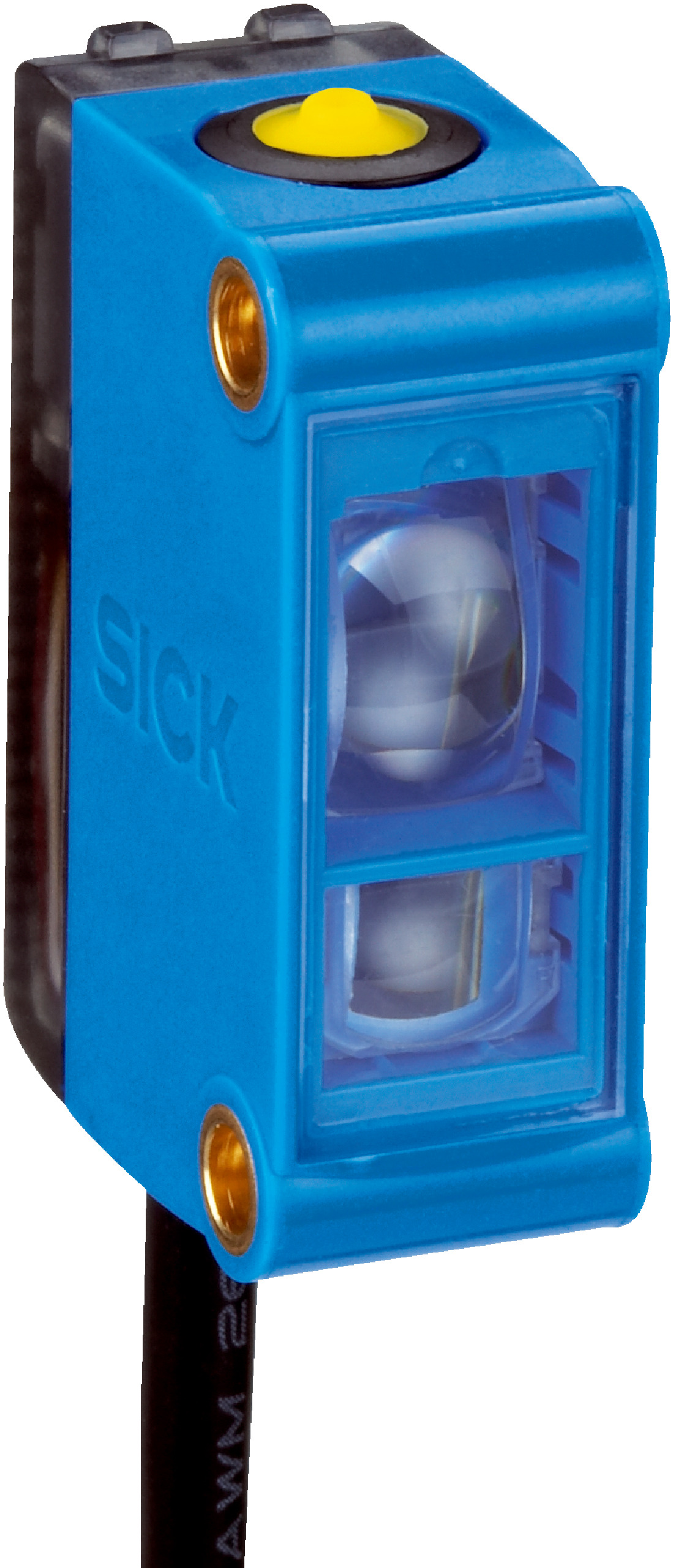

RGB LED Sensor | NPN Output | IP67 Rated | 12.5 mm Sensing Distance | by SICK
The RGB LED Sensor is designed for precise object detection in industrial automation, featuring a sensing distance of up to 12.5 mm and an NPN output for reliable performance. With an IP67 rating, this sensor is built to withstand harsh environments, making it ideal for manufacturing lines, quality control systems, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 12.5 mm with ±3 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light emission: Long side of housing, vertical spot direction
- Switching output: NPN, light/dark switching mode
- Supply voltage: 12 V DC to 24 V DC, ripple ≤ 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Protection class: III
- Enclosure rating: IP67
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M8 male connector, 4-pin, 0.2 m
- Operating temperature: –10 °C to +55 °C
- Storage temperature: –20 °C to +75 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with vertical light spot direction
- Teach-in button for easy adjustment with 2-point teach-in modes
- NPN switching output with light/dark switching mode
- Supply voltage range 12 V DC to 24 V DC with ripple ≤ 5 V pp
- Short response time of 32 µs and switching frequency of 15 kHz
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M8 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Non-toxic materials compliant with China-RoHS standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

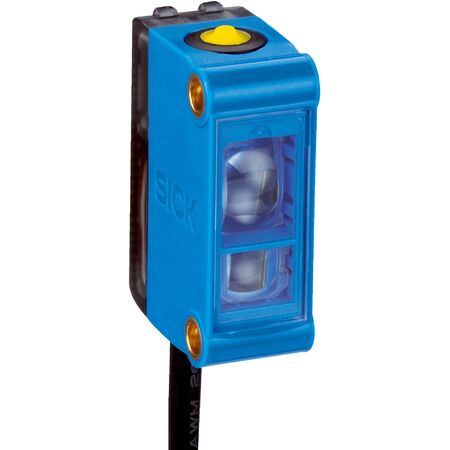

The SICK KTM-WN11173P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
