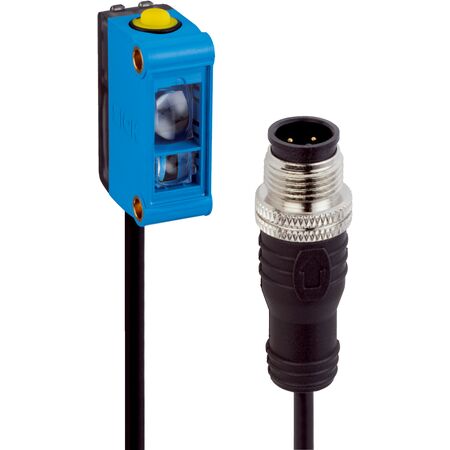

RGB LED Sensor | NPN Output | Small Housing Design | IP67 Rated | by SICK
The RGB LED Sensor is designed for precise object detection in industrial automation, featuring a sensing distance of up to 12.5 mm and a small housing for easy integration. With an NPN output and IP67 rating, it ensures reliable performance in various applications, including robotics and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 12.5 mm with ±3 mm tolerance
- Light source: LED RGB (640 nm, 525 nm, 470 nm)
- Light spot size: 1.9 mm x 9.4 mm, vertical direction
- Supply voltage: 12 V DC to 24 V DC, ripple < 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Switching output: NPN, light/dark switching
- Output current max: < 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS, Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 640 nm, 525 nm, and 470 nm
- Vertical light spot direction with spot size 1.9 mm x 9.4 mm
- Teach-in button for easy adjustment with static and dynamic teach-in modes
- Supply voltage range 12 V DC to 24 V DC with ripple less than 5 V pp
- Low current consumption under 50 mA
- Switching frequency of 1.7 kHz and response time of 300 µs
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure correct wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 50 mA reduces energy usage
- Durable IP67 housing minimizes environmental damage and extends product life
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSM-WN111C2P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
