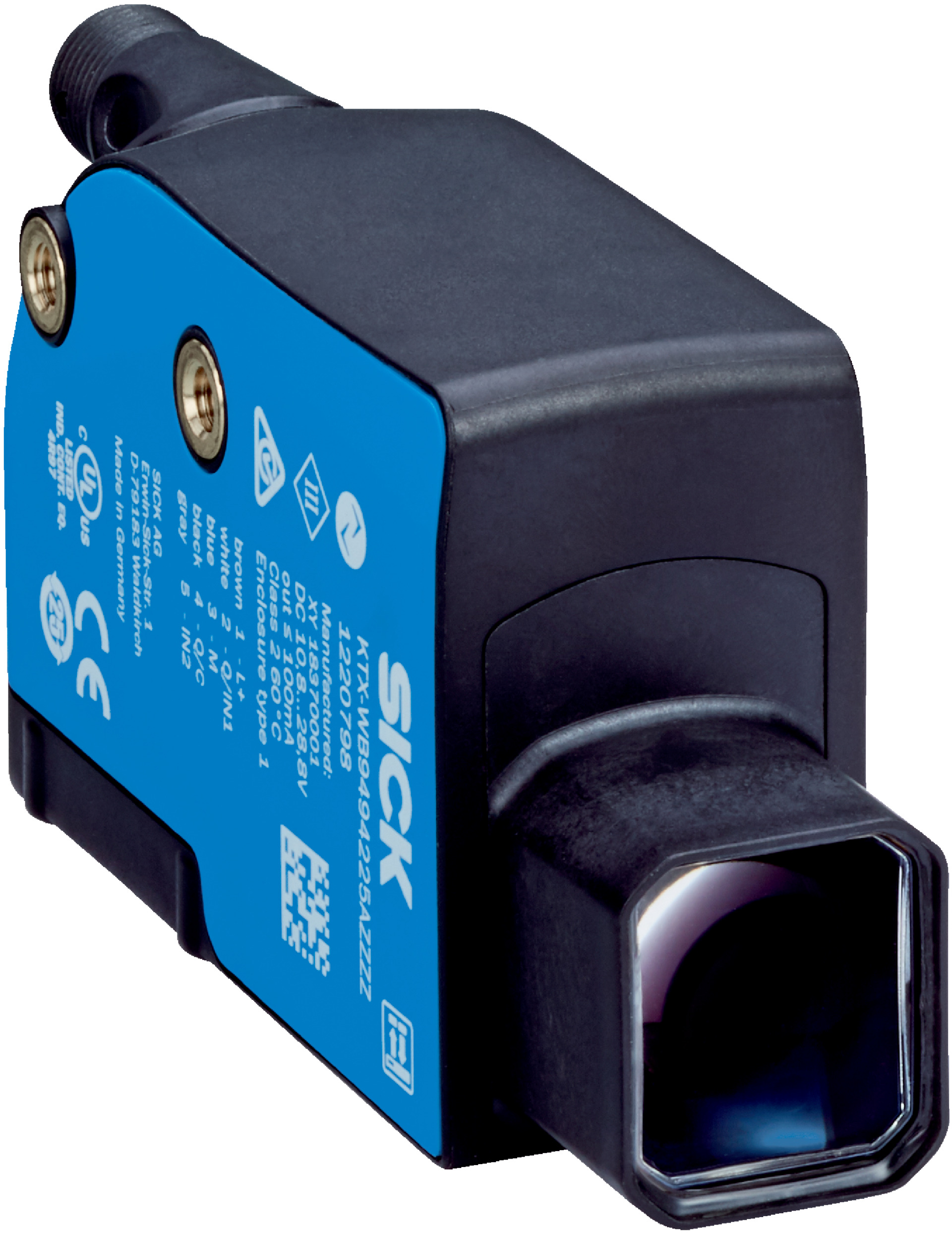

RGB LED Sensor | Sensing Distance ≤ 70 mm | IP67 Rated | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a sensing distance of up to 70 mm and an IP67 rating for harsh environments. With multiple teach-in modes and a light/dark switching output, it's perfect for quality control and material handling applications, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 70 mm with ±6 mm tolerance
- Light source: LED, RGB (470 nm, 525 nm, 625 nm)
- Light emission: Short device side, round large spot Ø 10 mm
- Teach-in modes: 1-point, 2-point, dynamic, auto
- Output function: Light/dark switching with adjustable delay
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: M12, 5-pin plug
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Weight: 94 g
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 70 mm with ±6 mm tolerance
- LED light source with RGB colors (470 nm, 525 nm, 625 nm)
- Short device side light emission with round, large light spot (Ø 10 mm)
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Light/dark switching output function with adjustable delay time
- IO-Link communication interface with digital inputs and outputs
- Push-pull PNP/NPN switching output with max 100 mA current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for harsh environments
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Material handling and logistics
- Special applications requiring long sensing distance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

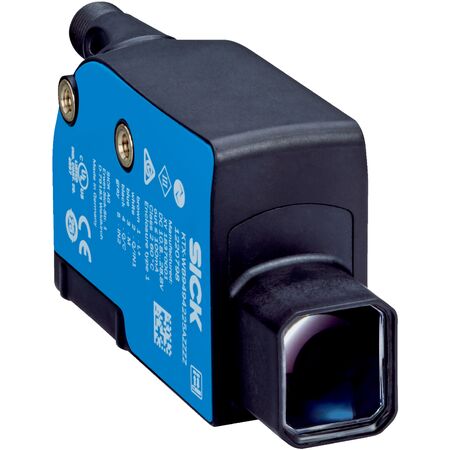

The SICK KTX-WB9A64225AZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
