RGB LED Sensor | Small Housing Proximity Sensor | IP67 Rated | Fast Response Time | by SICK
The RGB LED Sensor is designed for industrial automation, featuring a small housing and a sensing distance of up to 12.5 mm. With a high switching frequency of 15 kHz and a fast response time of 32 µs, this sensor is perfect for precise object detection and position sensing in manufacturing lines. Its IP67 rating ensures durability in harsh environments, making it an ideal choice for robotics and automated machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Switching output: NPN, dark switching mode
- Output current max: 50 mA
- Retention time: 28 ms, non-volatile memory
- Housing material: ABS
- Optics material: PMMA
- Connection type: Male connector M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: –10 °C to +55 °C
- Shock load: According to IEC 60068
- LED indicators: Green for power on, yellow for switching output status
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a light spot size of 1.6 mm x 9.5 mm
- Teach-in button for easy adjustment with 2-point teach-in static/dynamic modes
- High switching frequency of 15 kHz and fast response time of 32 µs
- NPN switching output with dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from –10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Robotics and automated machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS housing and PMMA optics material for long service life
- IP67 rating ensures protection against dust and water, reducing maintenance and replacement waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

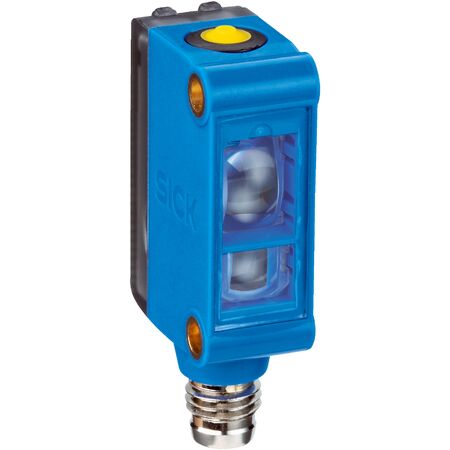

The SICK KTM-WN11101PS07 RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
