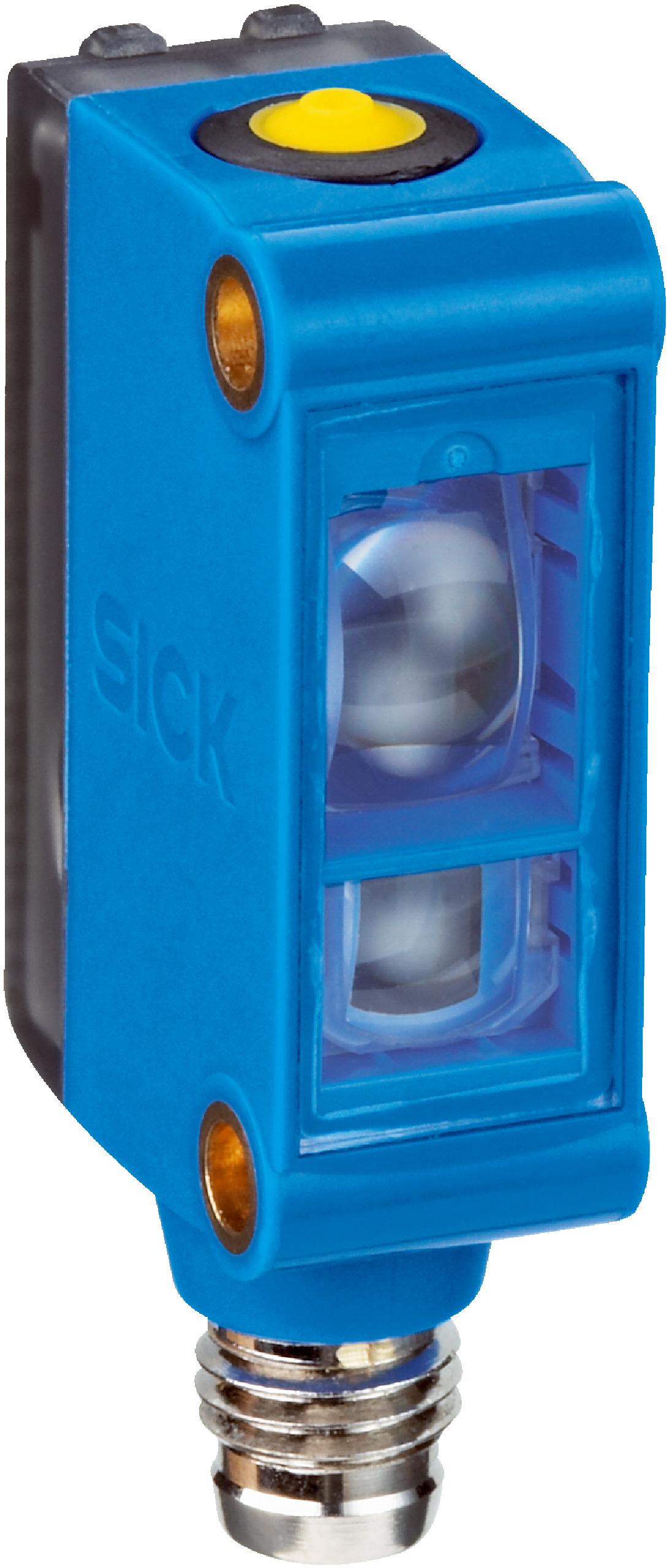

RGB LED Sensor | Small Housing Proximity Sensor | IP67 Rated | NPN Output | by SICK
The RGB LED Sensor is designed for precise object detection in industrial automation, featuring a small housing and an IP67 rated enclosure for dust and water protection. With a fast response time of 32 µs and a switching frequency of 15 kHz, this sensor is perfect for quality control systems and robotics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Switching output: NPN, max output current 50 mA
- Protection class: III
- Housing material: ABS
- Optics material: PMMA
- Connection type: Male M8, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: According to IEC 60068
- LED indicators: Green for power, yellow for output status
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- NPN switching output with light/dark switching mode
- IP67 rated enclosure for dust and water protection
- Teach-in button for easy adjustment with 2-point teach-in modes
- Short response time of 32 µs and switching frequency of 15 kHz
- Reverse polarity and short-circuit protected circuitry
- LED indicators for power and output status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Robotics and machine vision applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Non-volatile memory reduces configuration errors and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

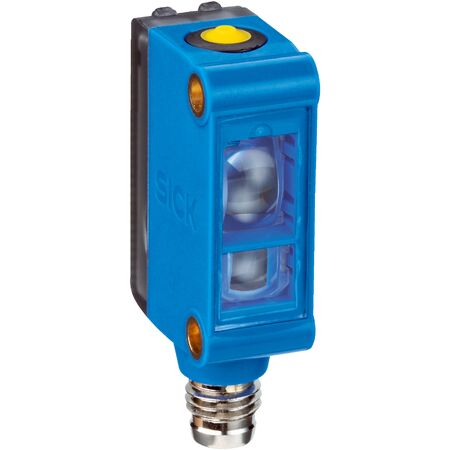

The SICK KTM-WN11171P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
