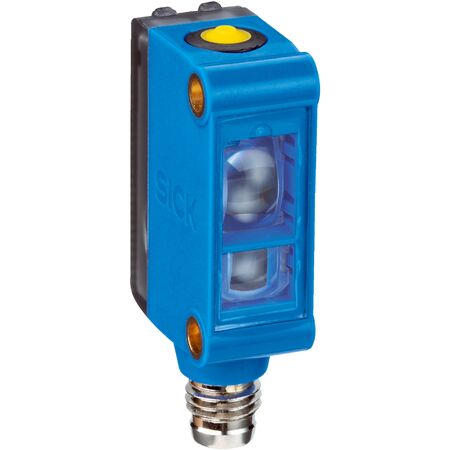

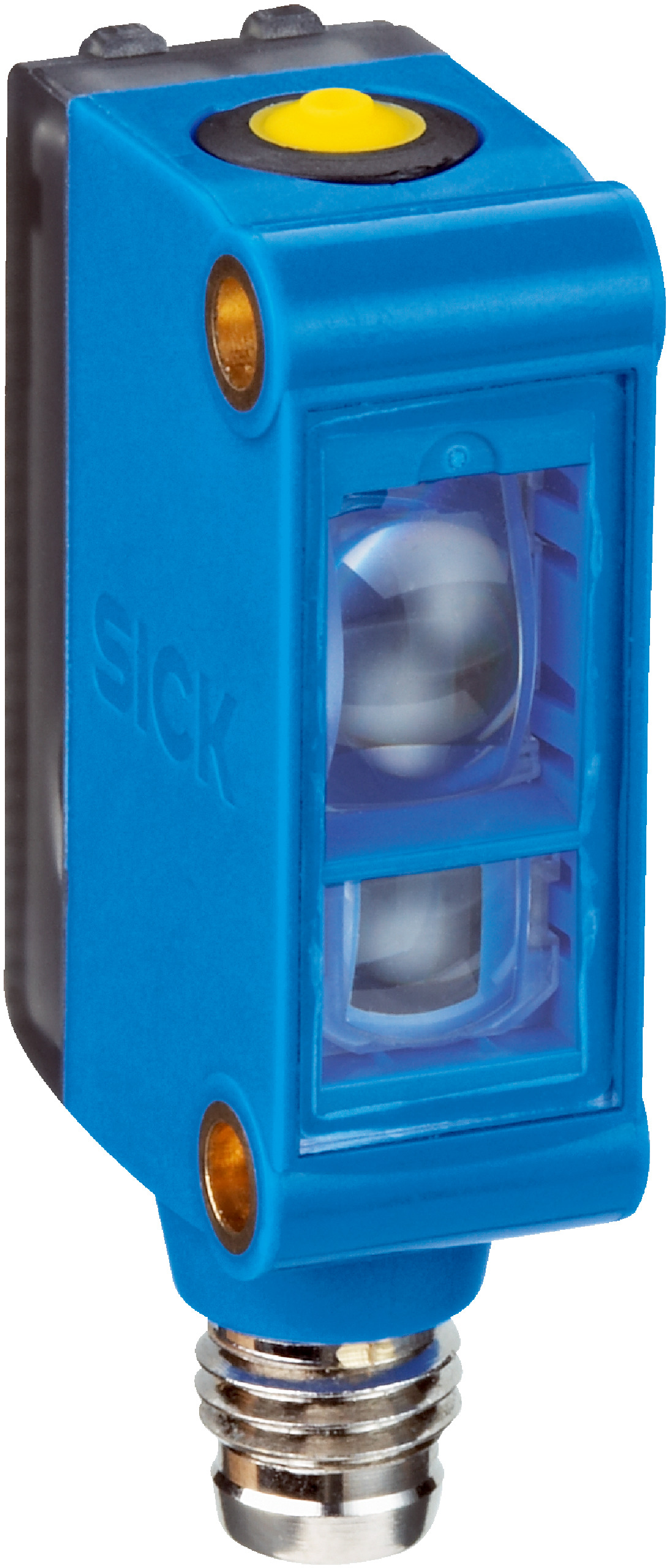

RGB LED Sensor | Small Housing Proximity Sensor | NPN Output | IP67 Rated | by SICK
The RGB LED Sensor is designed for precise object detection in industrial automation, featuring a small housing and NPN switching output. With a sensing distance of up to 12.5 mm and an IP67 rated enclosure, it’s perfect for manufacturing lines, quality control systems, and robotics. Built for durability and low power consumption, this sensor ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: ≤ 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: NPN, HIGH approx. supply voltage, LOW ≤ 2 V
- Output current max: 50 mA
- Retention time: 28 ms, non-volatile memory
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: Male M8, 4-pin connector
- LED indicators: Green for power, yellow for output status
- Operating temperature: –10 °C to +55 °C
- Storage temperature: –20 °C to +75 °C
- Shock load: IEC 60068 compliant
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Light emission from the long side of housing with a 1.6 mm x 9.5 mm light spot
- Teach-in button for easy adjustment with 2-point teach-in modes
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from –10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WN11101PS09 RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
