High Sensitivity RGB Light Sensor | IP67 Rated | 25 kHz Switching Frequency | by SICK

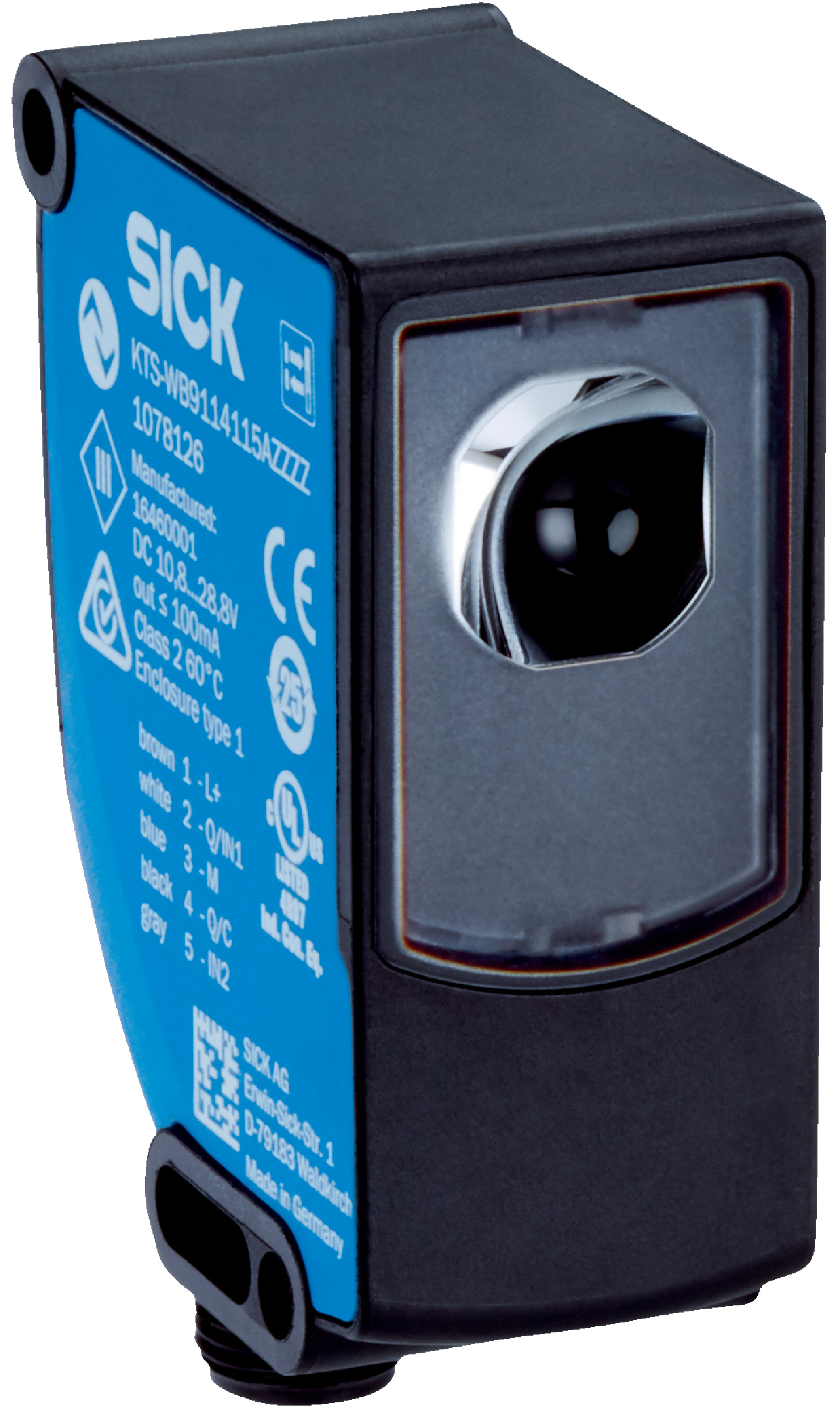

The KTS-WB9114115AZZZZ RGB light sensor is designed for high precision sensing in industrial automation, featuring a sensing distance of ≤ 13 mm and a 25 kHz switching frequency. With an IP67 rated enclosure, it ensures robust environmental protection, making it ideal for quality control systems and manufacturing processes that require reliable light/dark switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 13 mm with ±3 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 0.9 mm x 3.8 mm
- Switching frequency: 25 kHz
- Response time: 20 µs
- Jitter: 10 µs
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Plug, M12, 5-pin
- Housing material: VISTAL®
- Optics material: COP
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Storage temperature: -25°C to +75°C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- High sensitivity for precise detection
- Standard device type with middle housing design
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with vertical light spot direction
- Adjustable delay time and multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Push-pull PNP/NPN switching output with max output current of 100 mA
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for robust environmental protection
- Operating temperature range from -20°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- High precision sensing in manufacturing processes
- Quality control systems requiring reliable light/dark switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V to 28.8 V DC
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTS-WB9114115AZZZZ sensor is available for immediate purchase, ideal for industrial automation and high precision sensing applications.
