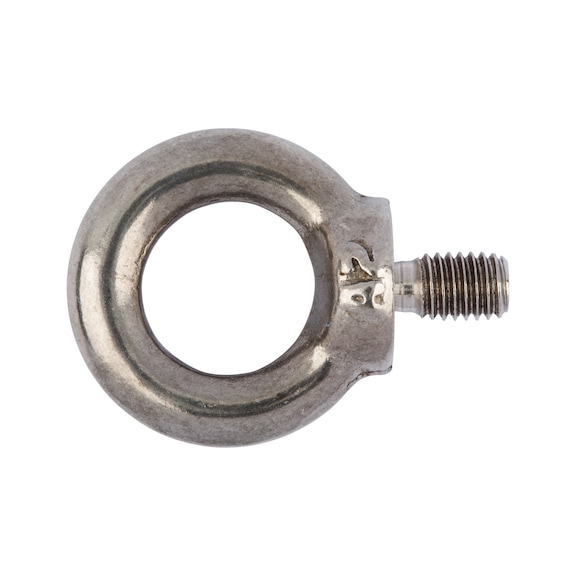

Ring Bolt DIN 580 A4 Stainless Steel | M6 | 75 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 A4 Stainless Steel is designed for lifting and securing loads, featuring a robust 75 kg load capacity and a plain surface finish. Ideal for industrial and construction applications, this M6 bolt is made from corrosion-resistant stainless steel, ensuring durability and compliance with DIN 580 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 A4 Stainless Steel | M6 | 75 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 2806
Alternatively Known As: Lifting Eye Bolt, Eye Bolt M6, DIN 580 Eye Bolt, Stainless Steel Ring Bolt
Technical Specifications
- Thread type x nominal diameter: M6
- Diameter of contact surface: 20 mm
- Outer diameter: 36 mm
- Internal diameter: 20 mm
- Height: 36 mm
- Length: 13 mm
- Material: Stainless steel A4
- Surface: Plain
- Max. load capacity: 75 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Thread length: 11.5 mm
- RoHS-compliant: Yes
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 36mm x 13mm x 36mm
- Weight: 0.05 kg
Key Features
- Made from stainless steel A4 for corrosion resistance
- Plain surface finish
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Compliant with DIN 580 standard
- RoHS-compliant
- EC declaration of conformity (CE) certified
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and securing loads in industrial and construction settings
- Attachment point for hoisting equipment
- Use in machinery and structural applications requiring load-bearing fasteners
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel to ensure long service life and reduce waste
- RoHS-compliant, ensuring no hazardous substances are used
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Bolt DIN 580 A4 Stainless Steel M6 is available for immediate purchase, ideal for industrial lifting and securing applications.
