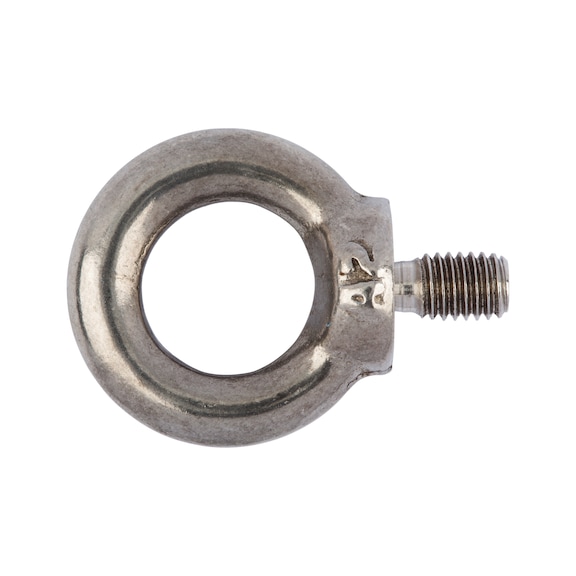

Ring Bolt DIN 580 A4 Stainless Steel | M10 | 230 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 A4 Stainless Steel is designed for lifting and rigging applications, featuring a robust M10 thread and a maximum load capacity of 230 kg. Ideal for securing loads in industrial and construction settings, this corrosion-resistant bolt ensures safety and compliance with AS/NZS standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 A4 Stainless Steel | M10 | 230 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 28010
Alternatively Known As: Lifting Eye Bolt, Eye Bolt M10, DIN 580 Eye Bolt, Stainless Steel Ring Bolt
Technical Specifications
- Thread type x nominal diameter: M10
- Diameter of contact surface: 25 mm
- Outer diameter: 45 mm
- Internal diameter: 25 mm
- Height: 45 mm
- Length: 17 mm
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Max. load capacity: 230 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1.5 mm
- Thread form: Standard metric thread
- Thread length (metric thread): 14 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 45mm x 17mm x 45mm
- Weight: 0.05 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from stainless steel A4 for corrosion resistance
- Plain surface finish
- Complies with DIN 580 standard
- Max load capacity of 230 kg
- Metric thread with standard pitch of 1.5 mm
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and rigging applications
- Securing loads in industrial and construction settings
- Attachment points for hoisting equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel A4 which is corrosion resistant and long-lasting, reducing replacement frequency and waste.
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Ring Bolt DIN 580 A4 Stainless Steel M10 is available for immediate purchase, ideal for industrial lifting and rigging applications.
