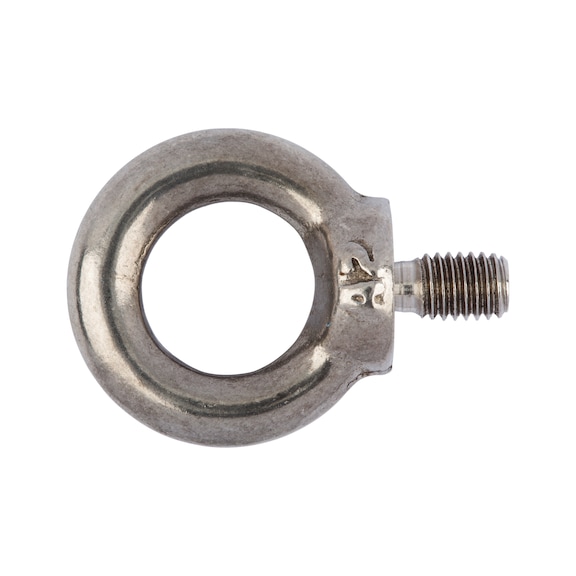

Ring Bolt DIN 580 A4 Stainless Steel | M12 Metric Thread | 340 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 A4 Stainless Steel is designed for industrial lifting and construction applications, featuring a robust M12 metric thread and a maximum load capacity of 340 kg. Made from high corrosion-resistant stainless steel with a plain finish, this lifting eye bolt is perfect for machinery fastening and outdoor use, ensuring durability and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 A4 Stainless Steel | M12 Metric Thread | 340 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 28012
Alternatively Known As: Lifting Eye Bolt, Eye Bolt M12, DIN 580 Eye Bolt, Stainless Steel Ring Bolt

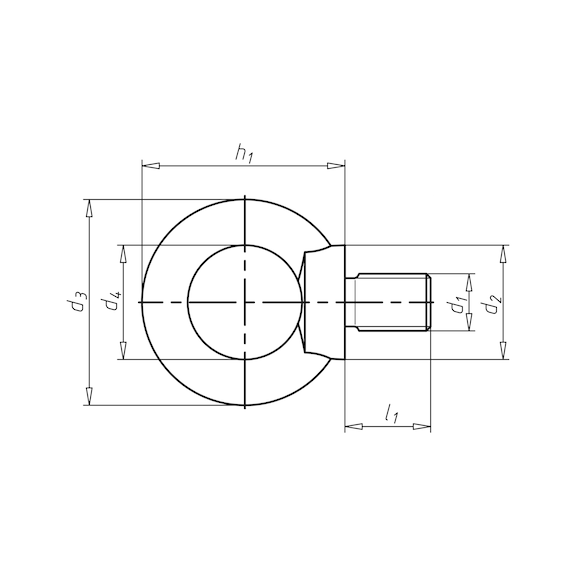

Technical Specifications
- Thread type x nominal diameter: M12
- Diameter of contact surface: 30 mm
- Outer diameter: 54 mm
- Internal diameter: 30 mm
- Height: 53 mm
- Length: 20.5 mm
- Standards: DIN 580
- Material: Stainless steel A4
- Surface: Plain
- Max. load capacity: 340 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1.75 mm
- Thread form: Standard metric thread
- Thread length: 17 mm
- RoHS-compliant: Yes
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 53mm x 20.5mm x 54mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A4 for high corrosion resistance
- Plain surface finish
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard
- Metric thread M12 with 1.75 mm pitch
- Max load capacity of 340 kg
- RoHS-compliant
- EC declaration of conformity (CE) certified
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Industrial lifting and rigging
- Construction and building applications
- Machinery and equipment fastening
- Marine and outdoor use due to stainless steel corrosion resistance
Standards & Compliance
- AS/NZS 1252 – High tensile fasteners
Environmental Benefits
- Stainless steel material ensures long product life and reduces need for frequent replacements
- RoHS-compliant, free from hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Bolt DIN 580 A4 Stainless Steel M12 is available for immediate purchase, ideal for industrial lifting and construction applications.
