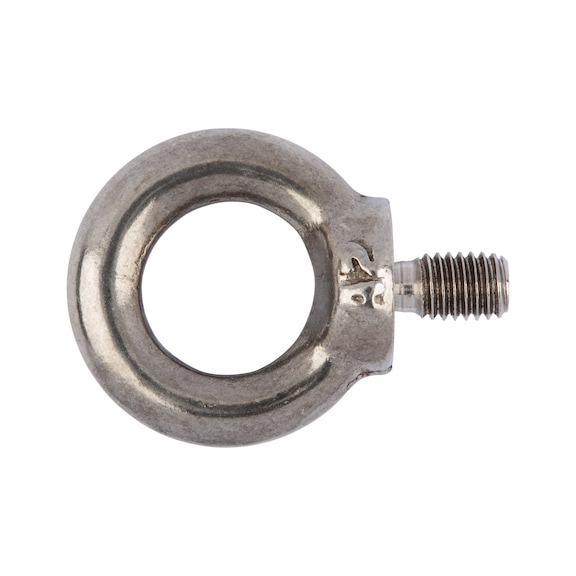

Ring Bolt DIN 580 A4 Stainless Steel M16 | 700 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 A4 Stainless Steel M16 is designed for lifting and rigging applications, boasting a robust 700 kg load capacity and a plain surface finish. Ideal for industrial, construction, and marine use, this durable bolt is made from high corrosion-resistant stainless steel, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 A4 Stainless Steel M16 | 700 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 28016
Alternatively Known As: Lifting Eye Bolt, Eye Bolt M16, DIN 580 Eye Bolt, Stainless Steel Ring Bolt

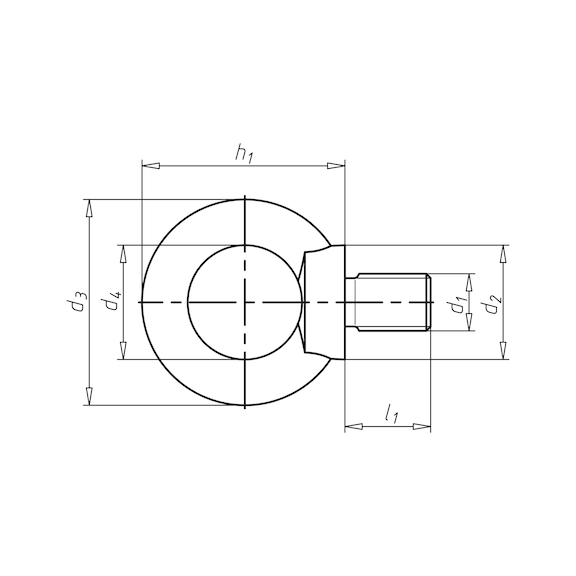

Technical Specifications
- Thread type x nominal diameter: M16
- Diameter of contact surface: 35 mm
- Outer diameter: 63 mm
- Internal diameter: 35 mm
- Height: 62 mm
- Length: 27 mm
- Material: Stainless steel A4
- Surface: Plain
- Max load capacity: 700 kg
- Head type: With lifting eye
- Thread pitch: 2 mm
- Thread form: Standard metric thread
- Thread length: 23 mm
- RoHS-compliant: Yes
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 62mm x 27mm x 63mm
- Weight: 0.15 kg
Key Features
- Made from stainless steel A4 for high corrosion resistance
- Plain surface finish
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard
- Max load capacity of 700 kg
- Metric thread M16 with 2 mm pitch
- Includes lifting eye head type
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and rigging applications
- Industrial machinery and equipment
- Construction and structural support
- Marine and outdoor use due to stainless steel corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1252 - Lifting and rigging hardware standards
Environmental Benefits
- Stainless steel material is durable and recyclable, reducing environmental impact
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Ring Bolt DIN 580 A4 Stainless Steel M16 is available for immediate purchase, ideal for industrial, construction, and marine lifting applications.
