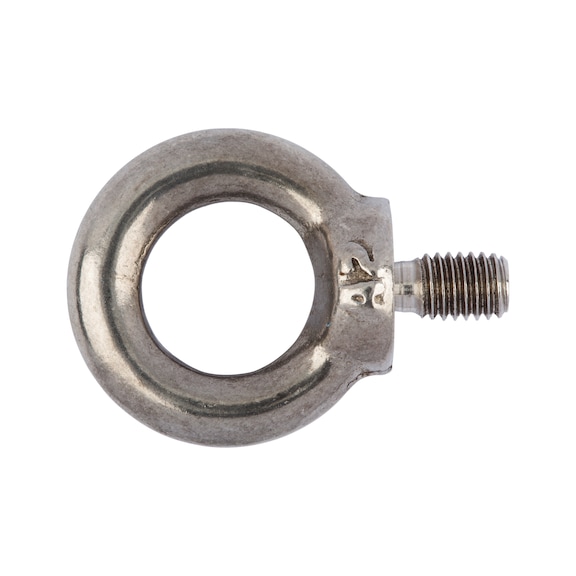

Ring Bolt DIN 580 A4 Stainless Steel | M20 | 1200 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 A4 Stainless Steel is designed for heavy-duty lifting and rigging applications, featuring a robust 1200 kg load capacity and a corrosion-resistant plain surface finish. Ideal for industrial machinery, construction, and marine installations, this M20 bolt ensures safety and compliance with DIN standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 A4 Stainless Steel | M20 | 1200 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 28020
Alternatively Known As: Lifting Eye Bolt, Eye Bolt M20, DIN 580 Eye Bolt, Stainless Steel Ring Bolt

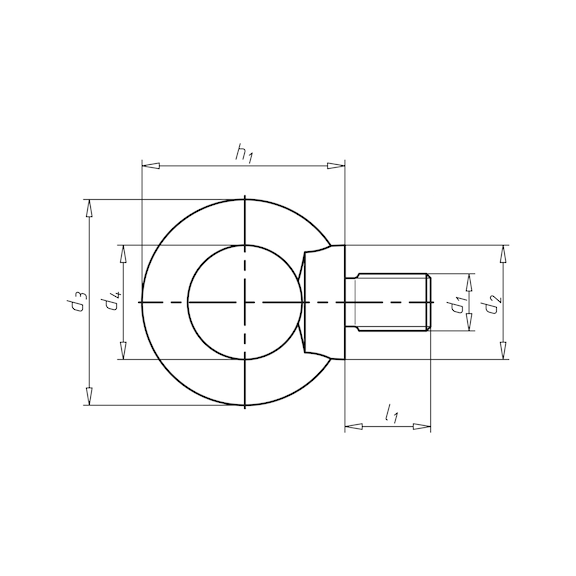

Technical Specifications
- Thread type x nominal diameter: M20
- Diameter of contact surface: 40 mm
- Outer diameter: 72 mm
- Internal diameter: 40 mm
- Height: 71 mm
- Length: 30 mm
- Material: Stainless steel A4
- Surface: Plain
- Max load capacity: 1200 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 2.5 mm
- Thread form: Standard metric thread
- Thread length: 25 mm
- RoHS-compliant: Yes
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 71mm x 30mm x 72mm
- Weight: 0.3 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from stainless steel A4 for corrosion resistance
- Plain surface finish
- Complies with DIN 580 standard
- Metric thread with pitch 2.5 mm
- Max load capacity of 1200 kg
- RoHS-compliant
- EC declaration of conformity (CE) certified
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and rigging applications
- Industrial machinery and equipment
- Construction and structural support
- Marine and offshore installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel A4, reducing the need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Bolt DIN 580 A4 Stainless Steel M20 is available for immediate purchase, ideal for industrial lifting and rigging applications.
