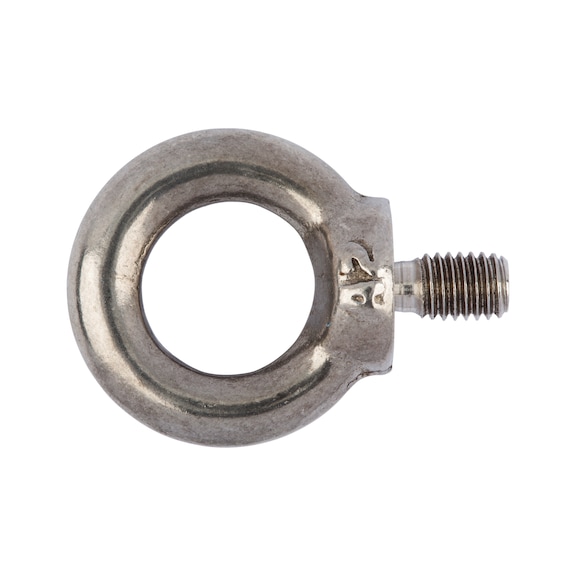

Ring Bolt DIN 580 A4 Stainless Steel M24 | 1800 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 A4 Stainless Steel M24 is designed for industrial lifting and rigging, boasting a robust 1800 kg load capacity and a corrosion-resistant plain surface finish. Ideal for construction, machinery anchoring, and marine applications, this durable lifting eye bolt ensures safety and compliance with DIN 580 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 A4 Stainless Steel M24 | 1800 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 28024
Alternatively Known As: Lifting Eye Bolt, Eye Bolt M24, DIN 580 Eye Bolt, Stainless Steel Ring Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M24
- Diameter of contact surface (d2): 50 mm
- Outer diameter (d3): 90 mm
- Internal diameter (d4): 50 mm
- Height (h1): 90 mm
- Length (l1): 36 mm
- Standards: DIN 580
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Max. load capacity: 1800 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 3 mm
- Thread form: Standard metric thread
- Thread length (metric thread): 30 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 90mm x 36mm x 90mm
- Weight: 0.5 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from stainless steel A4 for corrosion resistance
- Plain surface finish
- Complies with DIN 580 standard
- Max load capacity of 1800 kg
- Metric thread with 3 mm pitch
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Industrial lifting and rigging
- Construction and building sites
- Machinery and equipment anchoring
- Marine and offshore applications
Standards & Compliance
- Complies with AS/NZS 1252 for lifting and rigging hardware
Environmental Benefits
- Made from durable stainless steel A4, reducing the need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Ring Bolt DIN 580 A4 Stainless Steel M24 is available for immediate purchase, ideal for industrial lifting and rigging applications.
