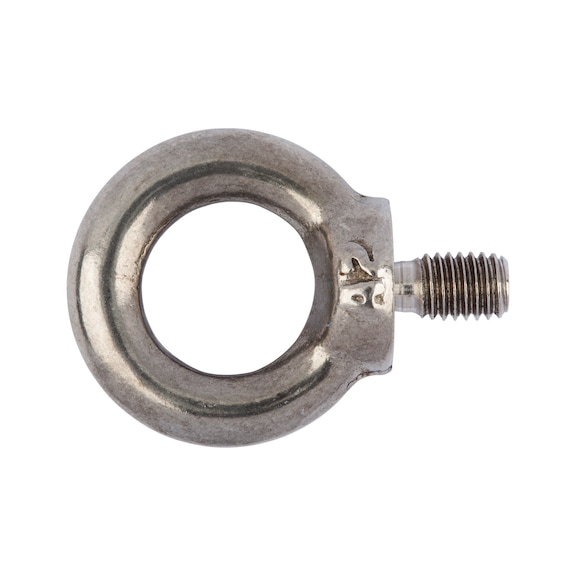

Ring Bolt DIN 580 A4 Stainless Steel M8 | 140 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 A4 Stainless Steel M8 is designed for lifting and rigging applications, featuring a robust 140 kg load capacity and a corrosion-resistant plain surface finish. Ideal for securing loads in industrial and construction settings, this reliable lifting eye bolt ensures safety and compliance with DIN 580 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 A4 Stainless Steel M8 | 140 kg Load Capacity | Plain Surface Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 2808
Alternatively Known As: Lifting Eye Bolt, Eye Bolt M8, DIN 580 Eye Bolt, Stainless Steel Ring Bolt

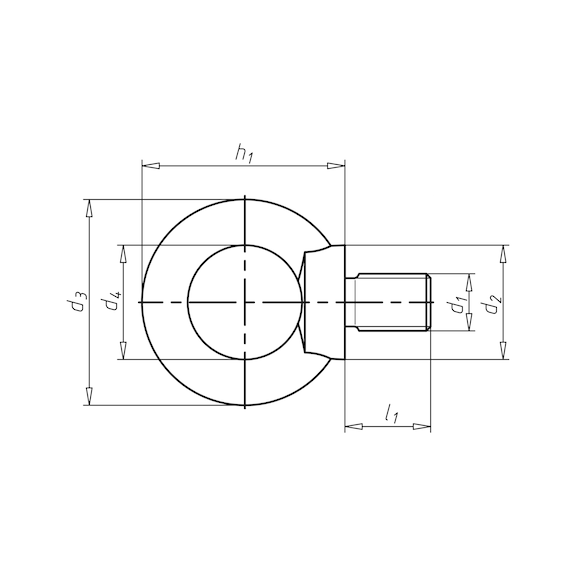

Technical Specifications
- Thread type x nominal diameter (d1): M8
- Diameter of contact surface (d2): 20 mm
- Outer diameter (d3): 36 mm
- Internal diameter (d4): 20 mm
- Height (h1): 36 mm
- Length (l1): 13 mm
- Standards: DIN 580
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Max. load capacity: 140 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Standard metric thread
- Thread length (metric thread): 11.5 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 36mm x 13mm x 36mm
- Weight: 0.05 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from stainless steel A4 for corrosion resistance
- Plain surface finish
- Compliant with DIN 580 standard
- RoHS-compliant
- EC declaration of conformity (CE) certified
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and rigging applications
- Securing loads in industrial and construction settings
- Attachment points for hoisting equipment
Standards & Compliance
- Complies with AS/NZS 1252 for lifting and rigging hardware
Environmental Benefits
- Made from durable stainless steel A4 which is recyclable and corrosion resistant, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Ring Bolt DIN 580 A4 Stainless Steel M8 is available for immediate purchase. Ideal for industrial lifting and securing applications.
