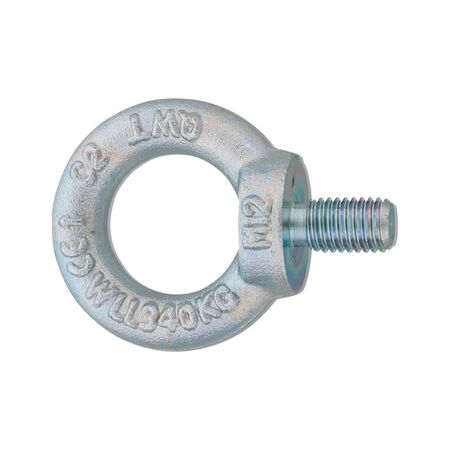

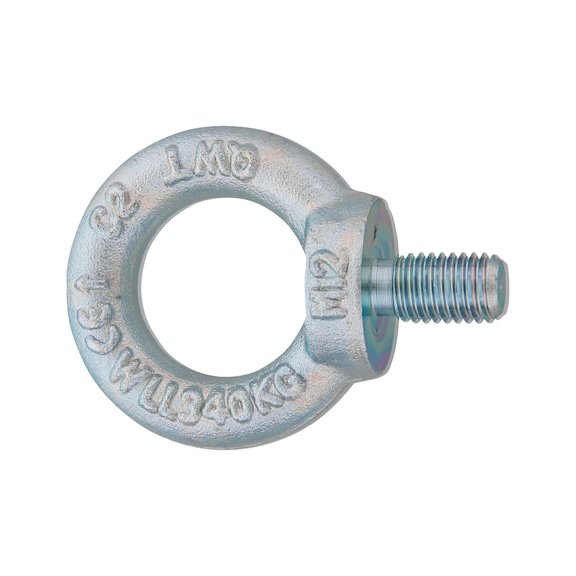

Ring Bolt DIN 580 | C15 E Zinc-Plated Steel | 700 kg Load Capacity | Blue Passivated | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 is crafted from high-strength C15E zinc-plated steel, designed for lifting and rigging applications. With a maximum load capacity of 700 kg and a corrosion-resistant blue passivated finish, it's perfect for industrial machinery and construction projects. Ensure safety and compliance with this durable and reliable lifting solution, ideal for trained personnel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 | C15 E Zinc-Plated Steel | 700 kg Load Capacity | Blue Passivated | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 295916
Alternatively Known As: Lifting eye bolt, Eye bolt DIN 580, Ring fastener, Lifting ring bolt
Technical Specifications
- Thread type x nominal diameter (d1): M16
- Diameter of contact surface (d2): 35 mm
- Outer diameter (d3): 63 mm
- Internal diameter (d4): 35 mm
- Height (h1): 62 mm
- Length (l1): 27 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Zinc plated, blue passivated (A2K)
- RoHS-compliant: Yes
- Max. load capacity: 700 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 2 mm
- Thread form: Standard metric thread
- Thread length (metric thread): 23 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 62mm x 27mm x 63mm
- Weight: 0.15 kg
Key Features
- Made from case hardening steel (C15E) for high strength
- Zinc-plated and blue passivated surface for corrosion resistance
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard
- Maximum load capacity of 700 kg
- Metric thread with standard pitch of 2 mm
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and rigging applications
- Industrial machinery and equipment
- Construction and structural fastening
- General purpose load securing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Ring Bolt DIN 580 M16 zinc-plated steel is available for immediate purchase, ideal for industrial lifting and rigging applications.
