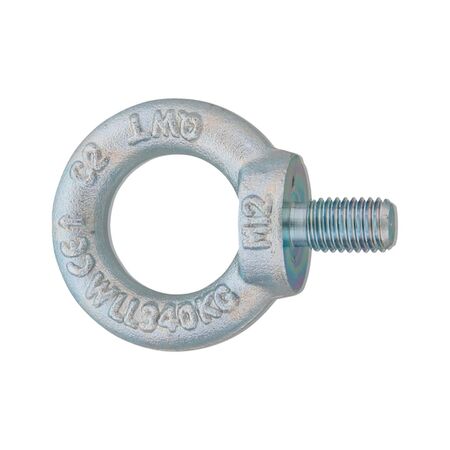

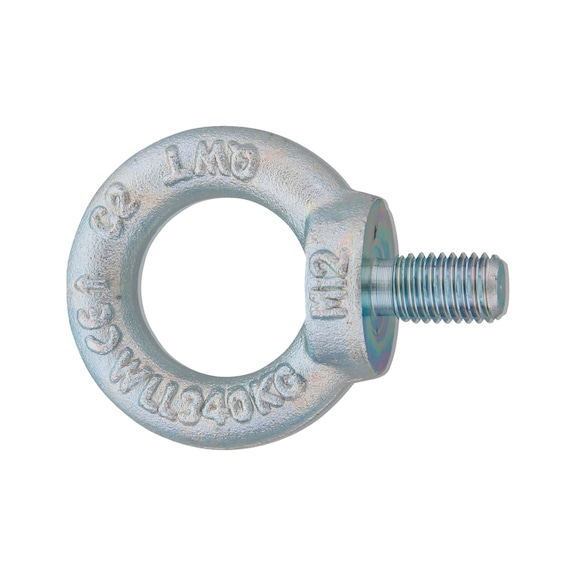

Ring Bolt DIN 580 | Zinc-Plated Steel | Corrosion Resistant | 140 kg Load Capacity | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 is crafted from zinc-plated steel, ensuring corrosion resistance and a robust 140 kg load capacity. Perfect for lifting and securing loads in industrial and construction settings, this reliable lifting eye bolt is designed for high-performance applications. With compliance to DIN 580 standards, it guarantees safety and durability for all your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 | Zinc-Plated Steel | Corrosion Resistant | 140 kg Load Capacity | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 29598
Alternatively Known As: Lifting Eye Bolt, Eye Bolt DIN 580, Zinc Plated Ring Bolt, Lifting Ring
Technical Specifications
- Thread type x nominal diameter: M8
- Diameter of contact surface: 20 mm
- Outer diameter: 36 mm
- Internal diameter: 20 mm
- Height: 36 mm
- Length: 13 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Zinc plated with blue passivation (A2K)
- RoHS-compliant: Yes
- Max. load capacity: 140 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Standard metric thread
- Thread length: 11.5 mm
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 36mm x 13mm x 36mm
- Weight: 0.05 kg
Key Features
- Made from case hardening steel (C15E) with zinc plating and blue passivation (A2K) for corrosion resistance
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard for ring bolts
- Maximum load capacity of 140 kg
- Metric thread with pitch 1.25 mm and thread length 11.5 mm
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and securing loads in industrial and construction settings
- Attachment point for hoisting equipment
- General purpose fastening requiring high load capacity
Standards & Compliance
- Complies with AS/NZS 1252 for lifting and rigging hardware
Environmental Benefits
- Zinc plating and passivation extend product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Bolt DIN 580 M8 zinc-plated steel is available for immediate purchase, ideal for industrial lifting and securing applications.
