Ring Bolt DIN 580 | Zinc-Plated Steel | Corrosion Resistant | 230 kg Load Capacity | @Pack of 5 | by Wurth
The Ring Bolt DIN 580 is crafted from durable zinc-plated steel, designed for lifting and securing loads in industrial and construction settings. With a maximum load capacity of 230 kg and corrosion-resistant properties, this bolt is perfect for hoisting equipment and structural applications. Ensure safety and compliance with this reliable attachment point, ideal for qualified personnel installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Bolt DIN 580 | Zinc-Plated Steel | Corrosion Resistant | 230 kg Load Capacity | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 295910
Alternatively Known As: Lifting Eye Bolt, Eye Bolt DIN 580, Ring Eye Bolt, Load Ring Bolt

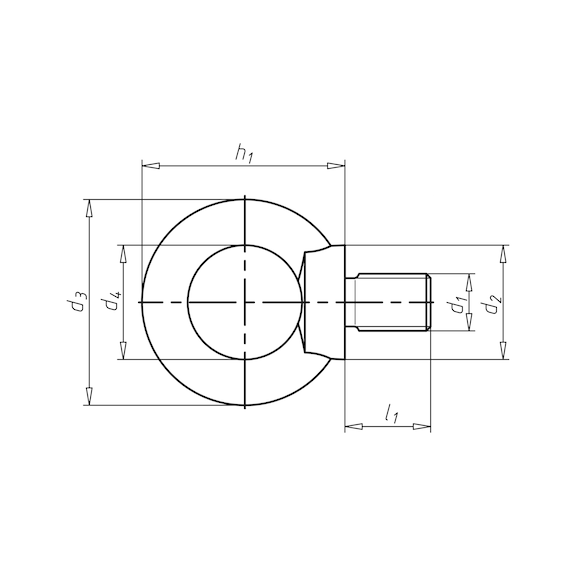

Technical Specifications
- Thread type x nominal diameter: M10
- Diameter of contact surface: 25 mm
- Outer diameter: 45 mm
- Internal diameter: 25 mm
- Height: 45 mm
- Length: 17 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Zinc plated, blue passivated (A2K)
- Max. load capacity: 230 kg
- Head type: With lifting eye
- Thread type: Metric thread
- Pitch: 1.5 mm
- Thread form: Standard metric thread
- Thread length: 14 mm
- RoHS-compliant: Yes
- EC declaration of conformity (CE): Yes
- Dimensions (H x L x W): 45mm x 17mm x 45mm
- Weight: 0.1 kg
Key Features
- Made from case hardening steel (C15E) for durability
- Zinc-plated and blue passivated surface for corrosion resistance
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Complies with DIN 580 standard
- Maximum load capacity of 230 kg
- Metric thread with standard pitch of 1.5 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Lifting and securing loads in industrial and construction settings
- Attachment point for hoisting equipment
- Use in machinery and structural applications requiring load-bearing fasteners
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Ring Bolt DIN 580 M10 zinc-plated steel is available for immediate purchase, ideal for industrial lifting and securing applications.
