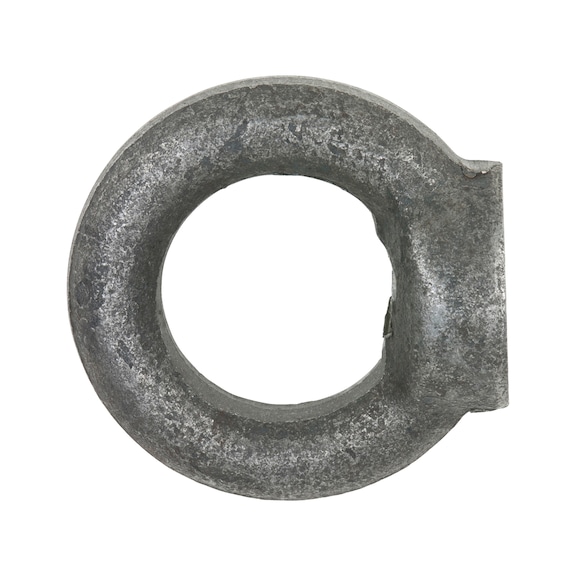

Ring Nut DIN 582 Steel C15E | M10 | 230 kg Load Capacity | RoHS Compliant | @Pack of 5 | by Wurth
The Ring Nut DIN 582 Steel C15E is designed for lifting and securing loads, featuring a robust M10 thread and a 230 kg load capacity. Made from durable case hardening steel, this RoHS-compliant nut is perfect for industrial and construction applications, ensuring safety and reliability in rigging and hoisting tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 Steel C15E | M10 | 230 kg Load Capacity | RoHS Compliant | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 3959010
Alternatively Known As: Eye Nut, Lifting Ring Nut, DIN 582 Eye Bolt Nut, Steel Eye Nut M10
Technical Specifications
- Thread type x nominal diameter (d): M10
- Internal diameter (d1): 25 mm
- Outer diameter (d2): 45 mm
- Diameter of contact surface (d3): 25 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 230 kg
- Nominal diameter: 10 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 25mm x 25mm x 45mm
- Weight: 0.05 kg
Key Features
- Ring fasteners stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel, 1.1141, C15E for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Used for lifting and securing loads in industrial and construction settings
- Suitable for rigging, hoisting, and anchoring applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Ring Nut DIN 582 Steel C15E Plain M10 is available for immediate purchase, ideal for industrial lifting and securing applications.
