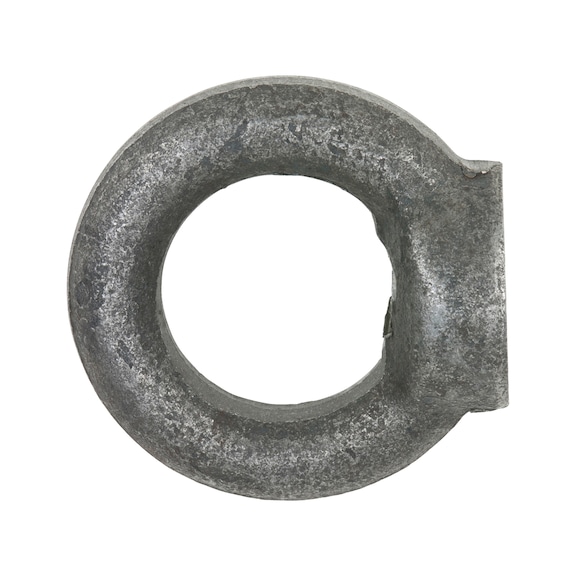

Ring Nut DIN 582 Steel C15E | M12 Forged Eye Nut | 340 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
The Ring Nut DIN 582 Steel C15E is a robust M12 forged eye nut designed for lifting and securing loads in industrial and construction settings. With a load capacity of 340 kg and made from durable case hardening steel, this nut ensures safety and compliance in hoisting applications. Its plain finish and RoHS compliance make it an ideal choice for mechanical fastening and load-bearing connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ring Nut DIN 582 Steel C15E | M12 Forged Eye Nut | 340 kg Load Capacity | Plain Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 3959012
Alternatively Known As: Eye Nut M12, Lifting Ring Nut, Forged Eye Bolt Nut, Load Ring Nut
Technical Specifications
- Thread type x nominal diameter (d): M12
- Internal diameter (d1): 30 mm
- Outer diameter (d2): 54 mm
- Diameter of contact surface (d3): 30 mm
- Material: Case hardening steel, 1.1141, C15E
- Surface: Plain
- Load capacity (F max): 340 kg
- RoHS-compliant: Yes
- Dimensions (H x L x W): 30mm x 30mm x 54mm
- Weight: 0.1 kg
Key Features
- Stamped with W.L.L. and manufacturer markings as per AS requirements
- Made from case hardening steel 1.1141, C15E for durability
- Plain surface finish
- Load capacity of 340 kg
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel following the provided installation instructions to ensure safety and compliance.
Applications
- Used for lifting and securing loads in industrial and construction settings
- Suitable for use with hoisting equipment and rigging applications
- Ideal for mechanical fastening and load-bearing connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Ring Nut DIN 582 Steel C15E Plain M12 - 5 PCS is available for immediate purchase, ideal for industrial lifting and securing applications.
